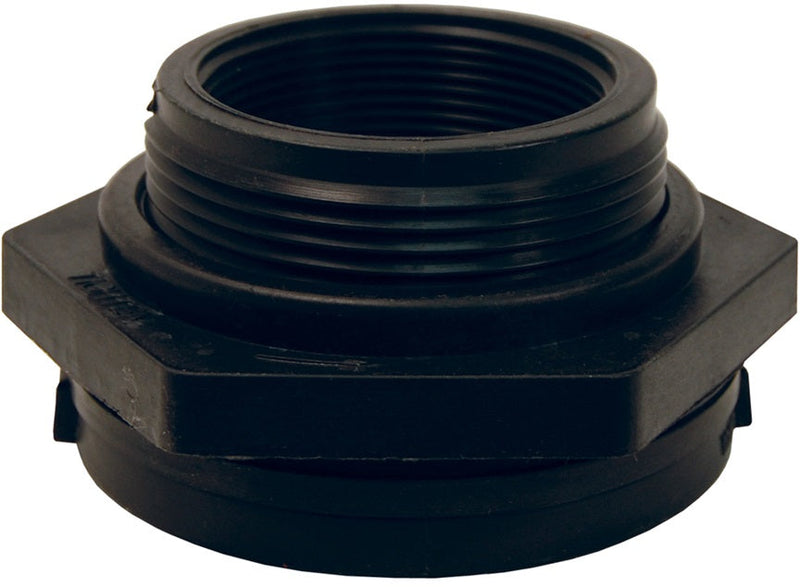

60405 by Dixon Valve | Bulkhead Fitting | 2" Female NPT | 3" Hole Size | Polypropylene

Name: 60405 by Dixon Valve | Bulkhead Fitting | 2" Female NPT | 3" Hole Size | Polypropylene
Brand: Dixon
SKU: 60405 Dixon
Price: 13.57 USD
Availability: InStock

Save $1.15

$14.72

$14.72 - $14.72

$14.72

$13.57

$13.57 - $13.57

$13.57

Dixon Valve
Bulkhead Fitting | Female NPT

For use on most poly storage tanks and many steel and fiberglass tanks.

Quantity

Specifications for Variant SKU: 60405 Dixon
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT, Some Ends Match
Material(s):	Polypropylene
Seal Material(s):	EPDM

Features:
Glass reinforced polypropylene provides strength and chemical resistance. EPDM gaskets are standard. 1-1/2" and 3" do not contain a washer.
Safety Notes:
Polypropylene fittings should not be used with compressed gas. Should not be used with aromatic hydrocarbons, carbon tetra-chloride, gasoline, hexane, kerosene, nitric acid, sodium hydrochlorite, toluene, trichloroethylene or xylene. Fittings are black.

Polypropylene Part Number	Female NPT	Hole Size
62834	1/2"	1-7/16"
60401	3/4"	1-7/16"
60427	1"	2-1/4"
60403	1-1/4"	2-1/4"
60124	1-1/2"	3"
63931 (No Washer)	1-1/2"	2-3/8"
60405	2"	3"
63481	2"	3"
63683	2"	3-1/4"
62299 (No Washer)	3"	4-1/2"

* Designed for tank wall thickness less than 3/8" - low profile.
