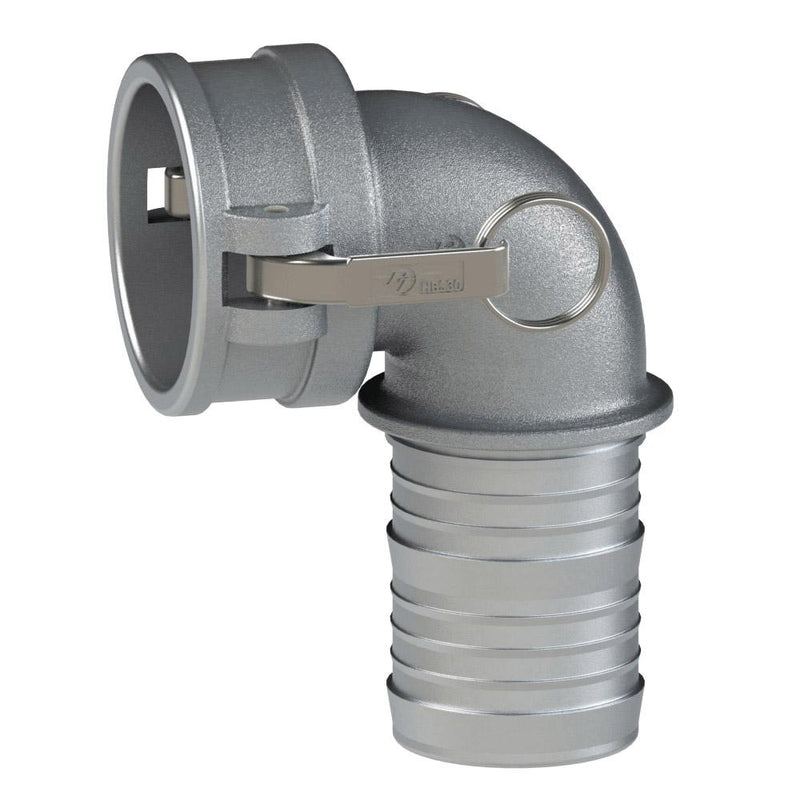

60501000 (10CL) by PT-Coupling | Cam & Groove Adapter | Type CL | 90° Elbow | 1" Coupler x 1" Hose Shank | Aluminum/HBS | Buna-N Seal

60501000 (10CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 1" Coupler x 1" Hose Shank | Aluminum/HBS | Buna-N Seal

Save $28.62

$77.07

$77.07 - $77.07

$77.07

$48.45

$48.45 - $48.45

$48.45

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60501000 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type C
Ends Configuration:	1in Female Cam & Groove, 1in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
10CL	60501000	90°	1"	1"	250 PSI
12CL	60501200	90°	1-1/4"	1-1/4"	250 PSI
15CL	60501500	90°	1-1/2"	1-1/2"	250 PSI
20CL	60502000	90°	2"	2"	250 PSI
30CL	60503000	90°	3"	3"	200 PSI
40CL	60504000	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
