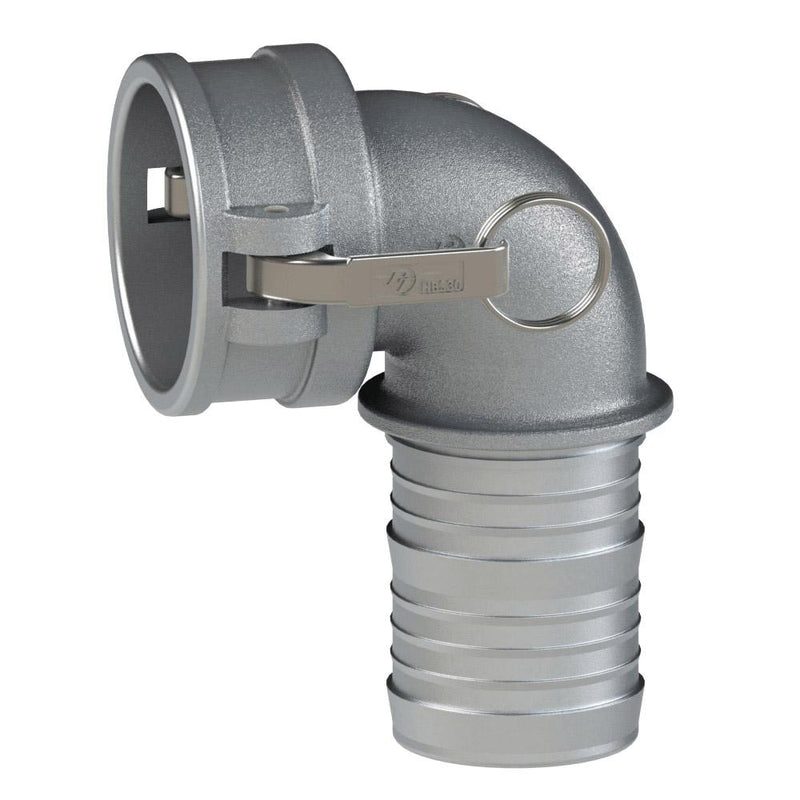

60503000 (30CL) by PT-Coupling | Cam & Groove Adapter | Type CL | 90° Elbow | 3" Coupler x 3" Hose Shank | Aluminum/HBS | Buna-N Seal

60503000 (30CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 3" Coupler x 3" Hose Shank | Aluminum/HBS | Buna-N Seal

Save $46.02

$123.98

$123.98 - $123.98

$123.98

$77.96

$77.96 - $77.96

$77.96

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60503000 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
10CL	60501000	90°	1"	1"	250 PSI
12CL	60501200	90°	1-1/4"	1-1/4"	250 PSI
15CL	60501500	90°	1-1/2"	1-1/2"	250 PSI
20CL	60502000	90°	2"	2"	250 PSI
30CL	60503000	90°	3"	3"	200 PSI
40CL	60504000	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
