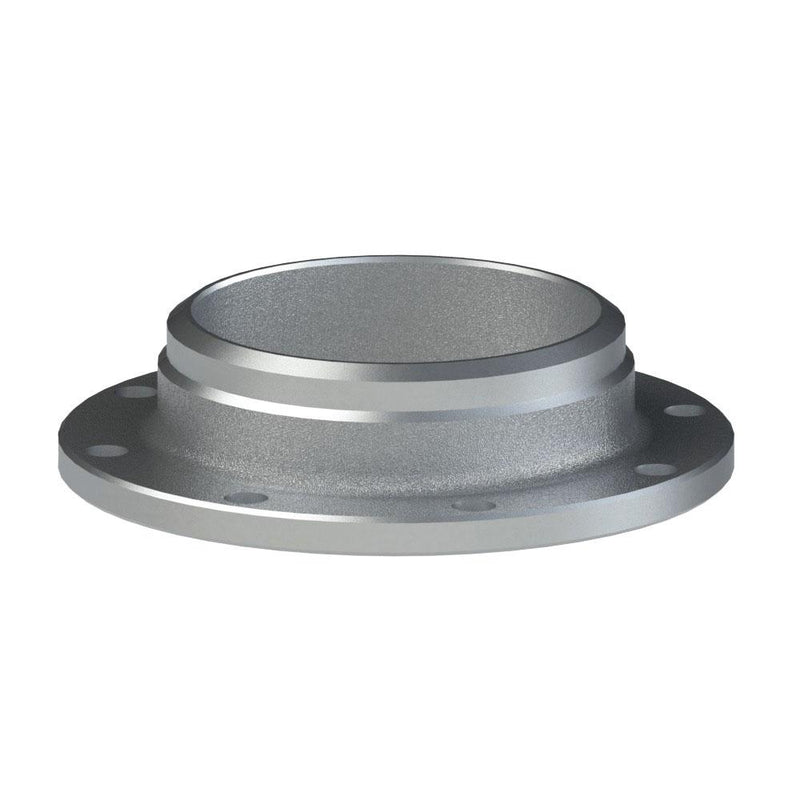

60513000WB (TTF30WB) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFWB | 3" Butt Weld for Schedule 40 Pipe x 3" TTMA Flange | Aluminum

60513000WB (TTF30WB) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFWB | 3" Butt Weld for Schedule 40 Pipe x 3" TTMA Flange | Aluminum

Save $31.75 Save $31.75
$85.52
$85.52 - $85.52
$85.52
$53.77
$53.77 - $53.77
$53.77

PT Coupling
Petroleum Handling TTMA Flange | Type TTFWB | Butt Weld for Schedule 40 Pipe x TTMA Flange | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 60513000WB PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Ends Configuration: 3in Weld End, 3in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Butt Weld
for Sch. 40 Pipe
Size		 TTMA Flange
Size		 Max. Allowable
Working Press.
(PSI)*
TTF30WB 60513000WB 3" 3" 200 PSI
TTF40WB 60604024 4" 4" 150 PSI
TTF60WB 60516000WB 6" 6" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
