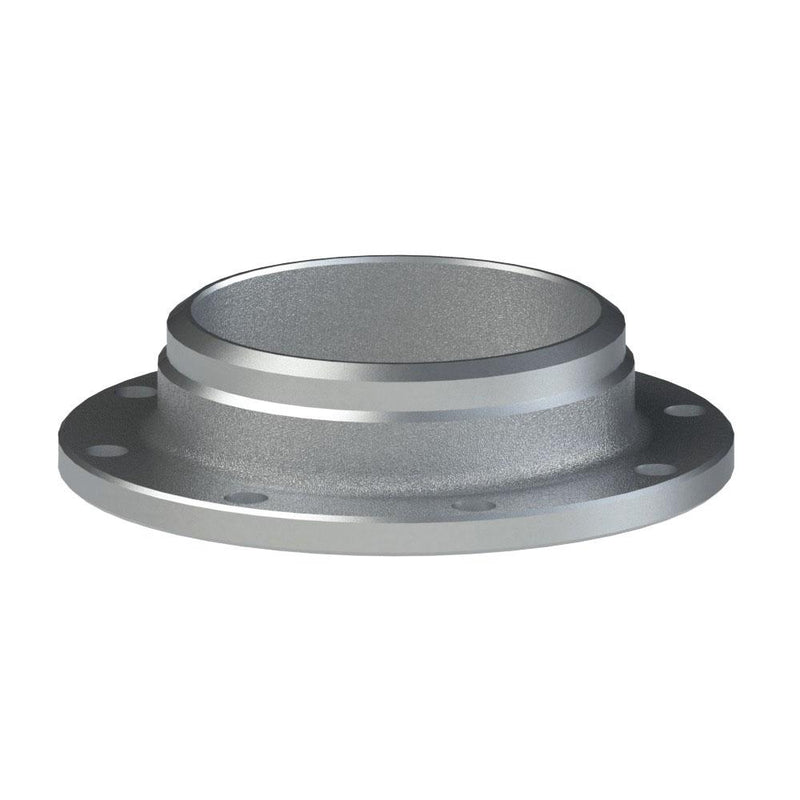

60604024 (TTF40WB) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFWB | 4" Butt Weld for Schedule 40 Pipe x 4" TTMA Flange | Aluminum

60604024 (TTF40WB) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFWB | 4" Butt Weld for Schedule 40 Pipe x 4" TTMA Flange | Aluminum

Save $48.23 Save $48.23
$129.92
$129.92 - $129.92
$129.92
$81.69
$81.69 - $81.69
$81.69

PT Coupling
Petroleum Handling TTMA Flange | Type TTFWB | Butt Weld for Schedule 40 Pipe x TTMA Flange | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 60604024 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Ends Configuration: 4in Weld End, 4in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Butt Weld
for Sch. 40 Pipe
Size		 TTMA Flange
Size		 Max. Allowable
Working Press.
(PSI)*
TTF30WB 60513000WB 3" 3" 200 PSI
TTF40WB 60604024 4" 4" 150 PSI
TTF60WB 60516000WB 6" 6" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
