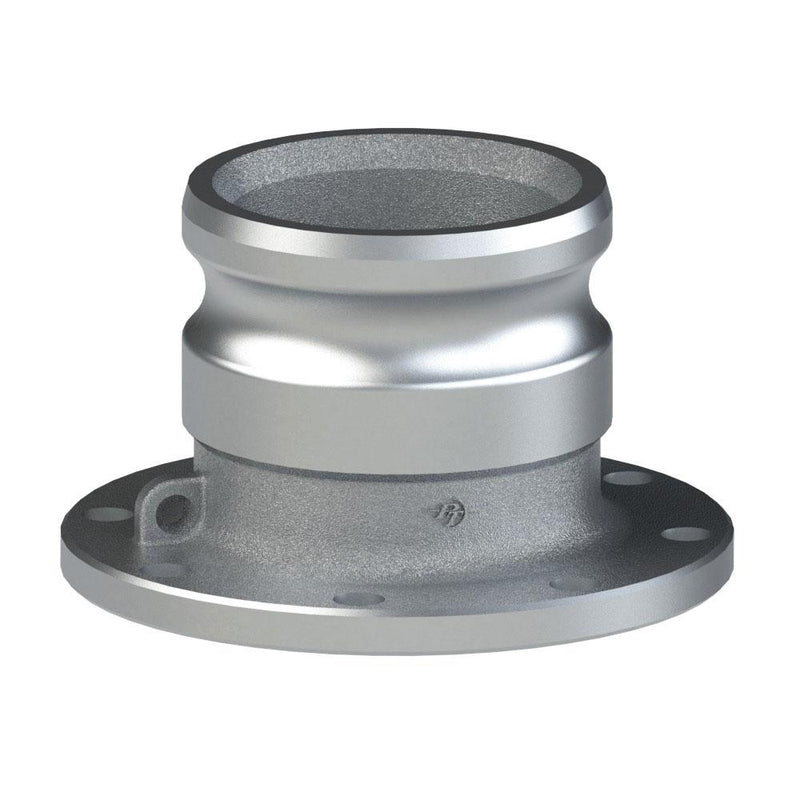

60562000 (TTF20A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 2" Adapter x 2" TTMA Flange | Aluminum

60562000 (TTF20A) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFA | 2" Adapter x 2" TTMA Flange | Aluminum

Save $31.23 Save $31.23
$84.15
$84.15 - $84.15
$84.15
$52.92
$52.92 - $52.92
$52.92

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFA | Adapter x TTMA Flange | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 60562000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Male Cam & Groove, 2in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size
(TTMA)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF20A 60562000 2" 2" 2.93" 1.63" 4.50" 0.44" 6 3.75" 250 PSI
TTF20X30A 60562030 2" 3" 2.93" 1.63" 4.50" 0.44" 6 3.75" 200 PSI
TTF20X40A 60562040 2" 4" 2.93" 1.63" 4.50" 0.44" 6 3.75" 150 PSI
TTF30A 60563000 3" 3" 3.38" 2.80" 5.63" 0.44" 8 4.88" 200 PSI
TTF30X40A 60563040 3" 4" 3.38" 2.80" 5.63" 0.44" 8 4.88" 150 PSI
TTF40A 60564000 4" 4" 3.35" 3.78" 6.63" 0.44" 8 5.88" 150 PSI
TTF60A 60566000 6" 6" 4.88" 5.84" 8.88" 0.44" 12 8.13" 75 PSI
TTF60X40A 60566040 6" 4" - - - - - - 75 PSI

** Denotes parts are produced as welded fabrication.
* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
