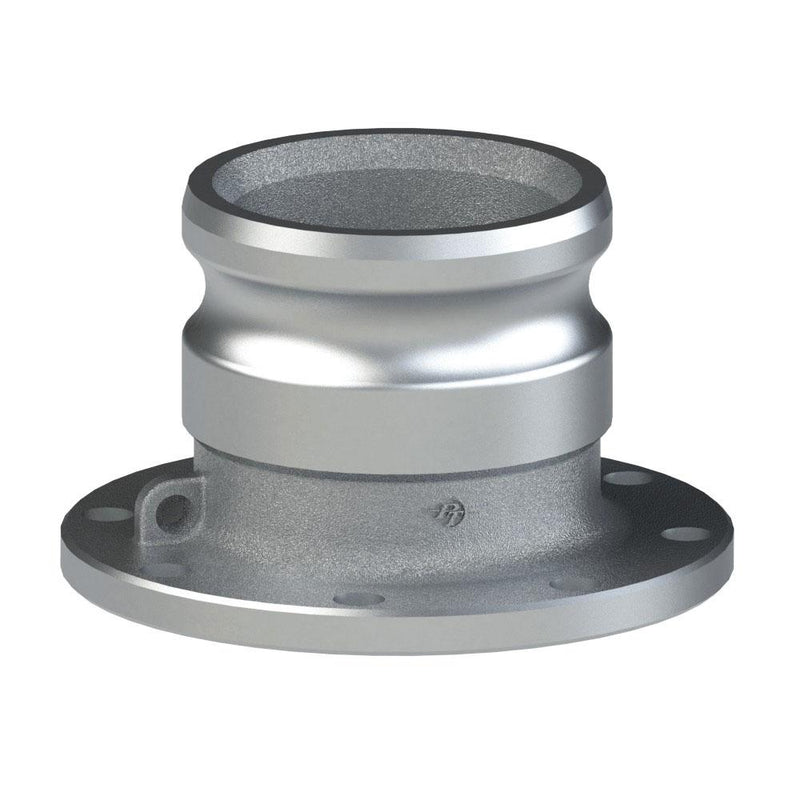

60562040 (TTF20X40A) by PT-Coupling | Reducing Petroleum Handling Cam & Groove Adapter | Type TTFA | 2" Adapter x 4" TTMA Flange | Aluminum

Name: 60562040 (TTF20X40A) by PT-Coupling | Reducing Petroleum Handling Cam & Groove Adapter | Type TTFA | 2" Adapter x 4" TTMA Flange | Aluminum
Brand: PT-Coupling
SKU: 60562040 PT-Coupling
Price: 130.32 USD
Availability: InStock

Save $76.93

$207.25

$207.25 - $207.25

$207.25

$130.32

$130.32 - $130.32

$130.32

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFA | Adapter x TTMA Flange | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.

Specifications for Variant SKU: 60562040 PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Male Cam & Groove, 4in TTMA Flange
Material(s):	Aluminum

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Adapter Size	Flange Size (TTMA)	Overall Length (C)	Inside Diameter (E)	Outside Diameter (F)	Bolt Hole Diameter (J)	Number of Holes (K)	Bolt Circle Diameter (L)	Max. Allowable Working Press. (PSI)*
TTF20A	60562000	2"	2"	2.93"	1.63"	4.50"	0.44"	6	3.75"	250 PSI
TTF20X30A	60562030	2"	3"	2.93"	1.63"	4.50"	0.44"	6	3.75"	200 PSI
TTF20X40A	60562040	2"	4"	2.93"	1.63"	4.50"	0.44"	6	3.75"	150 PSI
TTF30A	60563000	3"	3"	3.38"	2.80"	5.63"	0.44"	8	4.88"	200 PSI
TTF30X40A	60563040	3"	4"	3.38"	2.80"	5.63"	0.44"	8	4.88"	150 PSI
TTF40A	60564000	4"	4"	3.35"	3.78"	6.63"	0.44"	8	5.88"	150 PSI
TTF60A	60566000	6"	6"	4.88"	5.84"	8.88"	0.44"	12	8.13"	75 PSI
TTF60X40A	60566040	6"	4"	-	-	-	-	-	-	75 PSI

** Denotes parts are produced as welded fabrication.
* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
