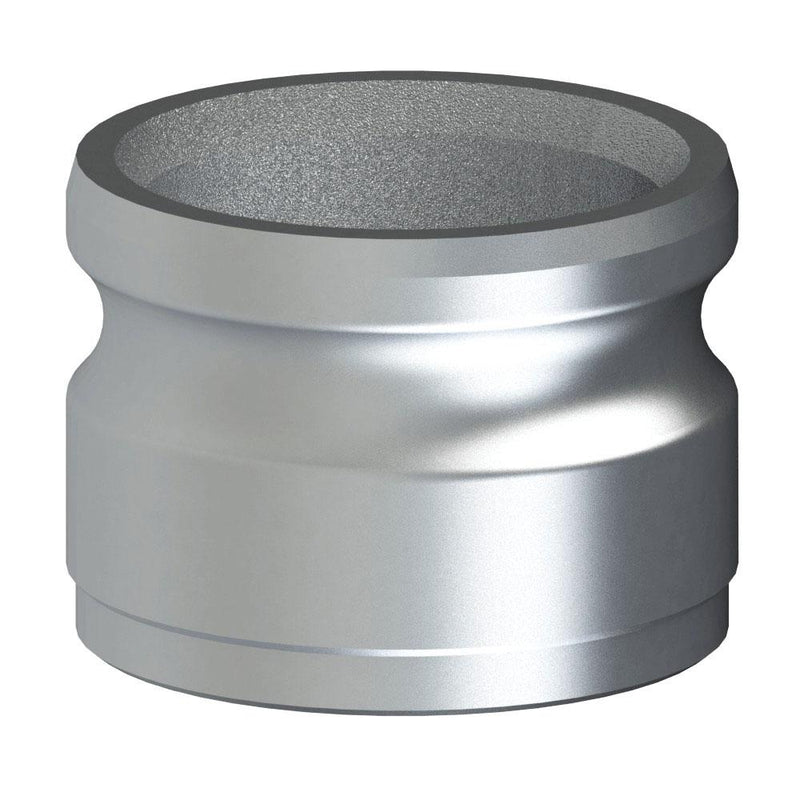

60604020 (40AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 4" Adapter x Butt Weld for .065 Tube | Aluminum

Name: 60604020 (40AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 4" Adapter x Butt Weld for .065 Tube | Aluminum
Brand: PT-Coupling
SKU: 60604020 PT-Coupling
Price: 61.67 USD
Availability: InStock

Save $36.40

$98.07

$98.07 - $98.07

$98.07

$61.67

$61.67 - $61.67

$61.67

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for .065 Tube | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60604020 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Male Cam & Groove, 4in Weld End
Material(s):	Aluminum

Features & Applications:
Made in the USA


Part Name	Item #	Size	Overall Length (A)	Inside Diameter (B)	Max. Allowable Working Press. (PSI)*
30AWB	60603014	3"	2.75"	2.81"	200 PSI
40AWB	60604020	4"	2.88"	3.75"	150 PSI
50AWB	60605016	5"	2.70"	4.75"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
