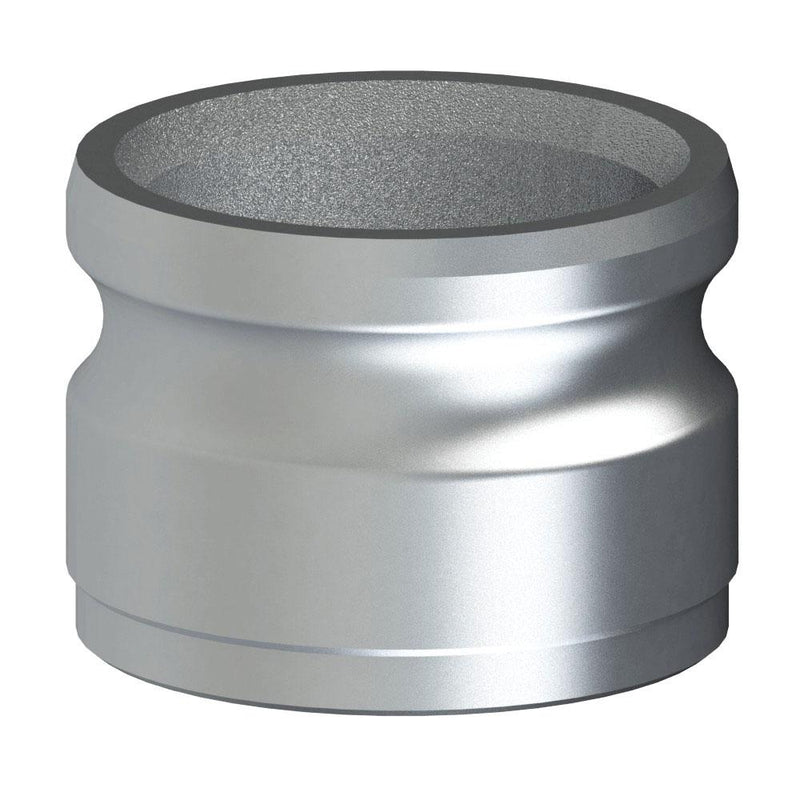

60605016 (50AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 5" Adapter x Butt Weld for .065 Tube | Aluminum

Name: 60605016 (50AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 5" Adapter x Butt Weld for .065 Tube | Aluminum
Brand: PT-Coupling
SKU: 60605016 PT-Coupling
Price: 91.89 USD
Availability: InStock

Save $54.24

$146.13

$146.13 - $146.13

$146.13

$91.89

$91.89 - $91.89

$91.89

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for .065 Tube | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60605016 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	5in Male Cam & Groove, 5in Weld End
Material(s):	Aluminum

Features & Applications:
Made in the USA


Part Name	Item #	Size	Overall Length (A)	Inside Diameter (B)	Max. Allowable Working Press. (PSI)*
30AWB	60603014	3"	2.75"	2.81"	200 PSI
40AWB	60604020	4"	2.88"	3.75"	150 PSI
50AWB	60605016	5"	2.70"	4.75"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
