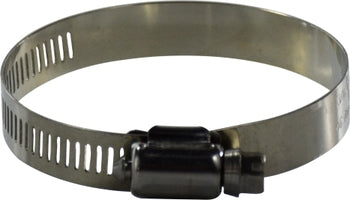

620088 (620-088) Midland Metal Hose Worm Gear Clamp - 620 Series - 1/2" Width - ID Range: 4" to 6" - 301 Stainless Steel Band / 305 Stainless Steel Screw

620088 by Midland | Metal Hose Worm Gear Clamp | 620 Series | 1/2" Width | ID Range: 4" to 6" | 301 Stainless Steel Band / 305 Stainless Steel Screw

Save $2.19

$5.48

$5.48 - $5.48

$5.48

$3.29

$3.29 - $3.29

$3.29

Midland Industries
Metal Hose Worm Gear Clamp - 620 Series

Especially suited to industrial applications.

All Stainless Steel - use for underground and other high corrosive applications.

Inventory @ Manufacturers Warehouse: 535 Units

Specifications for Variant SKU: 620088 Midland
Material(s):	301 Stainless Steel, 305 Stainless Steel
Clamp Width:	0.5
Minimum Clamp I.D.:	4
Maximum Clamp I.D.:	6

Features:
5/16" Hex Slotted 305 Stainless Steel Screw 1/2" (12.70mm) Wide 301 Stainless Steel Band 301 Stainless Steel Housing

Part Number	#	Diameter Range:
Part Number	#	Min.	Max.
620006 (620-006)	6	3/8"	7/8"
620008 (620-008)	8	7/16"	1"
620010 (620-010)	10	9/16"	1-1/16"
620012 (620-012)	12	9/16"	1-1/4"
620016 (620-016)	16	11/16"	1-1/2"
620020 (620-020)	20	3/4"	1-3/4"
620024 (620-024)	24	1-1/16"	2"
620028 (620-028)	28	1-5/16"	2-1/4"
620032 (620-032)	32	1-9/16"	2-1/2"
620036 (620-036)	36	1-13/16"	2-3/4"
620040 (620-040)	40	2-1/16"	3"
620044 (620-044)	44	2-5/16"	3-1/4"
620048 (620-048)	48	2-9/16"	3-1/2"
620052 (620-052)	52	2-13/16"	3-3/4"
620056 (620-056)	56	3-1/16"	4"
620060 (620-060)	60	3-5/16"	4-1/4"
620064 (620-064)	64	2-1/2"	4-1/2"
620072 (620-072)	72	3"	5"
620080 (620-080)	80	3-1/2"	5-1/2"
620088 (620-088)	88	4"	6"
620096 (620-096)	96	4-1/2"	6-1/2"
620104 (620-104)	104	5"	7"
620116 (620-116)	116	5-3/4"	7-3/4"
620128 (620-128)	128	6-1/2"	8-1/2"
620152 (620-152)	152	2"	10"
620164 (620-164)	164	1-3/4"	10-3/4"
620176 (620-176)	176	9-1/4"	11-1/4"
620188 (620-188)	188	2-1/16"	12-1/4"
620200 (620-200)	200	11"	13"
620212 (620-212)	212	11-3/4"	13-3/4"
620224 (620-224)	224	12-1/2"	14-1/2"
620248 (620-248)	248	10-3/4"	16"
620270 (620-270)	270	15-3/8"	17-3/8"
620312 (620-312)	312	18"	20"
620332 (620-332)	332	19-1/8"	21-1/4"
620390 (620-390)	390	22-7/8"	24-7/8"
