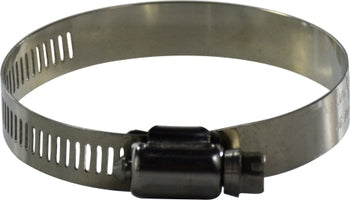

620248 (620-248) Midland Metal Hose Worm Gear Clamp - 620 Series - 1/2" Width - ID Range: 10-3/4" to 16" - 301 Stainless Steel Band / 305 Stainless Steel Screw

620248 by Midland | Metal Hose Worm Gear Clamp | 620 Series | 1/2" Width | ID Range: 10-3/4" to 16" | 301 Stainless Steel Band / 305 Stainless Steel Screw

Save $1.07 Save $1.07
$9.65
$9.65 - $9.65
$9.65
$8.58
$8.58 - $8.58
$8.58

Midland Industries
Metal Hose Worm Gear Clamp - 620 Series

Especially suited to industrial applications.

All Stainless Steel - use for underground and other high corrosive applications.

Inventory @ Manufacturers Warehouse: 419 Units
Specifications for Variant SKU: 620248 Midland
Material(s): 301 Stainless Steel, 305 Stainless Steel
Clamp Width: 0.5
Minimum Clamp I.D.: 10.75
Maximum Clamp I.D.: 16
Features:
  • 5/16" Hex Slotted 305 Stainless Steel Screw
  • 1/2" (12.70mm) Wide 301 Stainless Steel Band
  • 301 Stainless Steel Housing
Part Number # Diameter Range:
Min. Max.
620006
(620-006)		 6 3/8" 7/8"
620008
(620-008)		 8 7/16" 1"
620010
(620-010)		 10 9/16" 1-1/16"
620012
(620-012)		 12 9/16" 1-1/4"
620016
(620-016)		 16 11/16" 1-1/2"
620020
(620-020)		 20 3/4" 1-3/4"
620024
(620-024)		 24 1-1/16" 2"
620028
(620-028)		 28 1-5/16" 2-1/4"
620032
(620-032)		 32 1-9/16" 2-1/2"
620036
(620-036)		 36 1-13/16" 2-3/4"
620040
(620-040)		 40 2-1/16" 3"
620044
(620-044)		 44 2-5/16" 3-1/4"
620048
(620-048)		 48 2-9/16" 3-1/2"
620052
(620-052)		 52 2-13/16" 3-3/4"
620056
(620-056)		 56 3-1/16" 4"
620060
(620-060)		 60 3-5/16" 4-1/4"
620064
(620-064)		 64 2-1/2" 4-1/2"
620072
(620-072)		 72 3" 5"
620080
(620-080)		 80 3-1/2" 5-1/2"
620088
(620-088)		 88 4" 6"
620096
(620-096)		 96 4-1/2" 6-1/2"
620104
(620-104)		 104 5" 7"
620116
(620-116)		 116 5-3/4" 7-3/4"
620128
(620-128)		 128 6-1/2" 8-1/2"
620152
(620-152)		 152 2" 10"
620164
(620-164)		 164 1-3/4" 10-3/4"
620176
(620-176)		 176 9-1/4" 11-1/4"
620188
(620-188)		 188 2-1/16" 12-1/4"
620200
(620-200)		 200 11" 13"
620212
(620-212)		 212 11-3/4" 13-3/4"
620224
(620-224)		 224 12-1/2" 14-1/2"
620248
(620-248)		 248 10-3/4" 16"
620270
(620-270)		 270 15-3/8" 17-3/8"
620312
(620-312)		 312 18" 20"
620332
(620-332)		 332 19-1/8" 21-1/4"
620390
(620-390)		 390 22-7/8" 24-7/8"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
