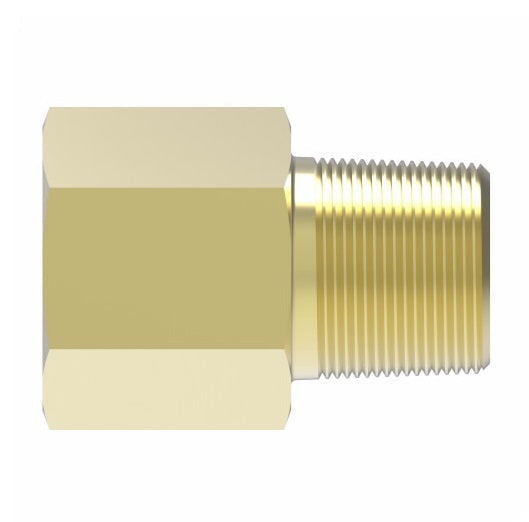

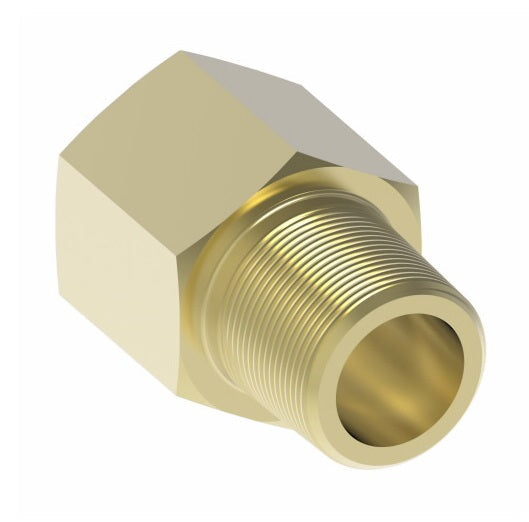

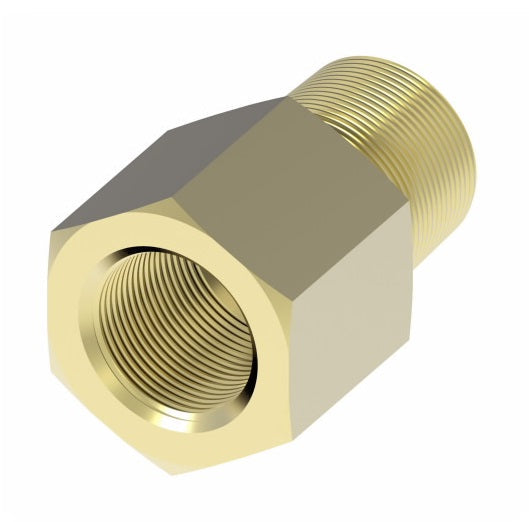

6200X2Z by Danfoss | Threaded Sleeve Adapter | Male Connector (with Sealant) | 1/8" Tube OD x 1/8" Male Pipe | Brass

6200X2Z by Danfoss | Threaded Sleeve Adapter | Male Connector (with Sealant) | 1/8" Tube OD x 1/8" Male Pipe | Brass

Name: 6200X2Z by Danfoss | Threaded Sleeve Adapter | Male Connector (with Sealant) | 1/8" Tube OD x 1/8" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: 6200X2Z Danfoss
Price: 1.2 USD
Availability: InStock

$1.20 - $1.20

$1.20

$1.20 - $1.20

$1.20

Aeroquip® by Danfoss
Threaded Sleeve Adapter - Male Connector - Straight

Specifications for Variant SKU: 6200X2Z Danfoss
Material(s):	Brass

Applications:
Oil, air, water and lubrication systems.
Advantages:
Easy to assemble (no flaring). Two (2) piece construction. Fair Vibration Resistance.
Used With:
Aluminum and copper tubing. Not recommended for steel tubing.
Material:
CA360 Brass.
Operating Pressure:
500 psi for 1/8" to 1/4" sizes. 250 psi for 5/16" and 3/8" sizes.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
Meets ASA and ASME specifications.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-20	9/16-20


Brass Part Number	Brass with Sealant Part Number	Tube OD	Male Pipe Thread	Hex C	D	L
6200X2	6200X2Z	1/8"	1/8"	7/16"	0.078"	0.62"
6200X2X21	-	1/8"	1/4-28 Tapered Male Thread	7/16"	0.080"	0.62"
6200X3	-	3/16"	1/8"	7/16"	0.141"	0.69"
6200X4	-	1/4"	1/8"	1/2"	0.188"	0.75"
