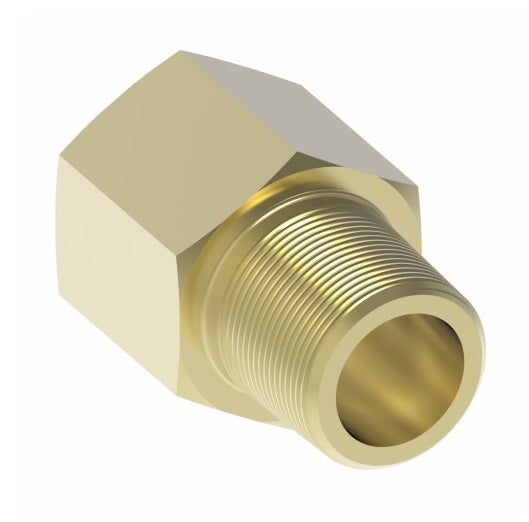

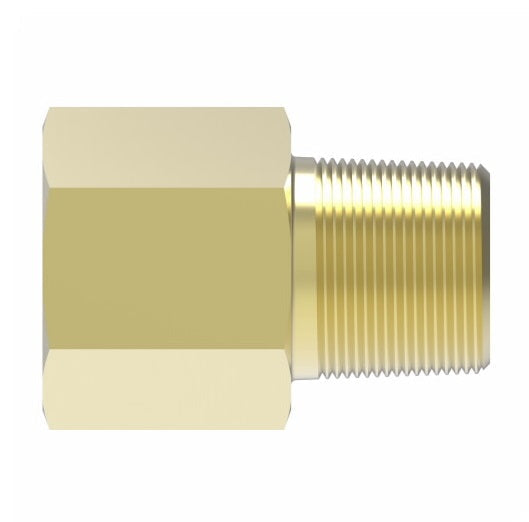

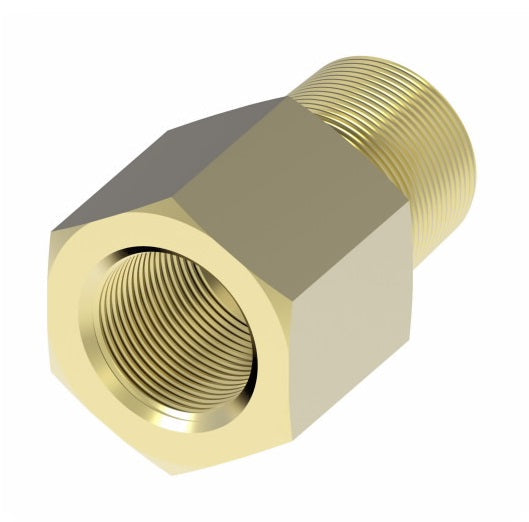

6200X3 by Danfoss | Threaded Sleeve Adapter | Male Connector | 3/16" Tube OD x 1/8" Male Pipe | Brass

6200X3 by Danfoss | Threaded Sleeve Adapter | Male Connector | 3/16" Tube OD x 1/8" Male Pipe | Brass

Name: 6200X3 by Danfoss | Threaded Sleeve Adapter | Male Connector | 3/16" Tube OD x 1/8" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: 6200X3 Danfoss
Price: 2.09 USD
Availability: InStock

$2.09 - $2.09

$2.09

$2.09 - $2.09

$2.09

Aeroquip® by Danfoss
Threaded Sleeve Adapter - Male Connector - Straight

Quantity

Specifications for Variant SKU: 6200X3 Danfoss
Material(s):	Brass

Applications:
Oil, air, water and lubrication systems.
Advantages:
Easy to assemble (no flaring). Two (2) piece construction. Fair Vibration Resistance.
Used With:
Aluminum and copper tubing. Not recommended for steel tubing.
Material:
CA360 Brass.
Operating Pressure:
500 psi for 1/8" to 1/4" sizes. 250 psi for 5/16" and 3/8" sizes.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
Meets ASA and ASME specifications.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-20	9/16-20


Brass Part Number	Brass with Sealant Part Number	Tube OD	Male Pipe Thread	Hex C	D	L
6200X2	6200X2Z	1/8"	1/8"	7/16"	0.078"	0.62"
6200X2X21	-	1/8"	1/4-28 Tapered Male Thread	7/16"	0.080"	0.62"
6200X3	-	3/16"	1/8"	7/16"	0.141"	0.69"
6200X4	-	1/4"	1/8"	1/2"	0.188"	0.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
