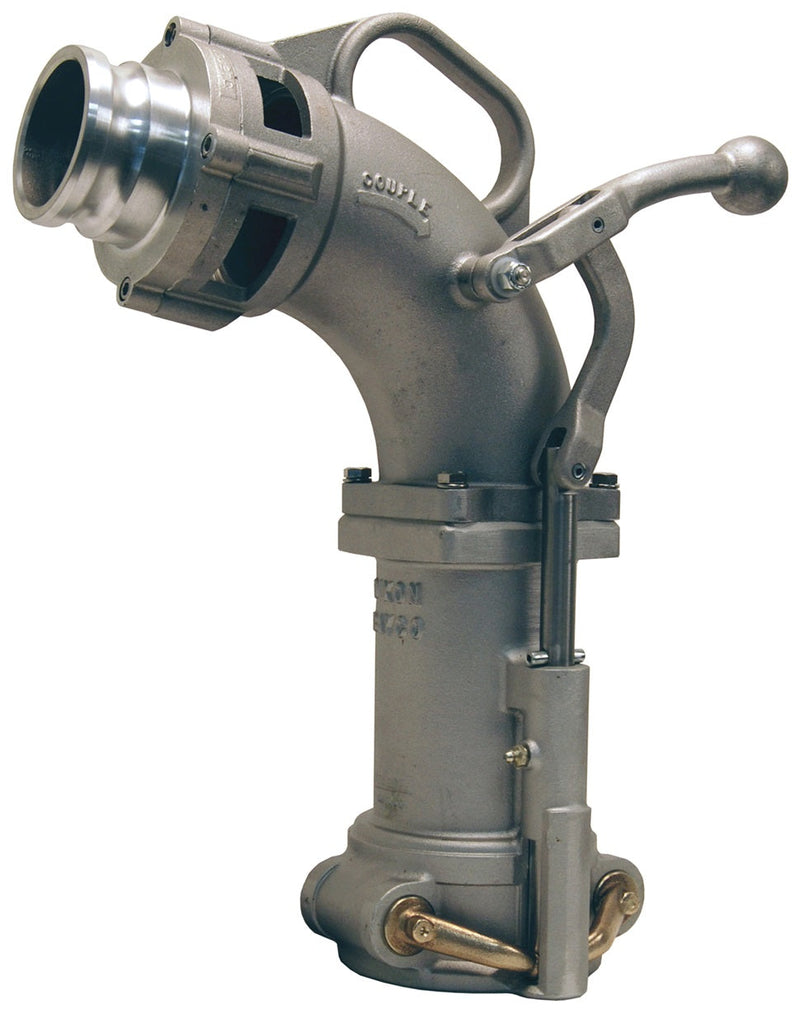

6200XC by Dixon Valve | 6200-Series | Side Lever Type Drop Elbow | 4" Size | Tall Elbow with 3" Adapter Inlet | Aluminum

6200XC by Dixon Valve | 6200-Series | Side Lever Type Drop Elbow | 4" Size | Tall Elbow with 3" Adapter Inlet | Aluminum

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
Tank Truck | 6200-Series | Side Lever Type Drop Elbow
Specifications for Variant SKU: 6200XC Dixon
Brand: Bayco
Series: 6200-Series
Shape (Orientation): Non-Standard Elbow
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Most parts are common through the Bayco elbow line, making any necessary maintenance a breeze.
  • Grease nipple enables the greasing of the lever stem, and Acetal bushings help keep everything moving smoothly, even in the harshest of conditions.
  • Bolt on inlets allow the inlet to be changed without having to worry about galling of threaded inlets.
  • Ball lever handle enables the operator to easily and positively engage the locking arms, onto the underground adapter.
Construction:
  • Cast aluminum modular construction.
  • Handle and cam arms: brass with nitrile rubber gasket.
  • Bolts on inlet end: stainless steel.
  • Sight glass: acrylic with nitrile rubber seals.
Part Number Size Inlet Overall Height Ground Clearance Fuel Compatibility
6200XC 4" Tall Elbow with 3" Adapter Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XT 4" Tall Elbow with Anti-Spill Sleeve, without Inlet Connection 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XAT 4" Tall Elbow with 4" Adapter Inlet and Anti-Spill Sleeve 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
