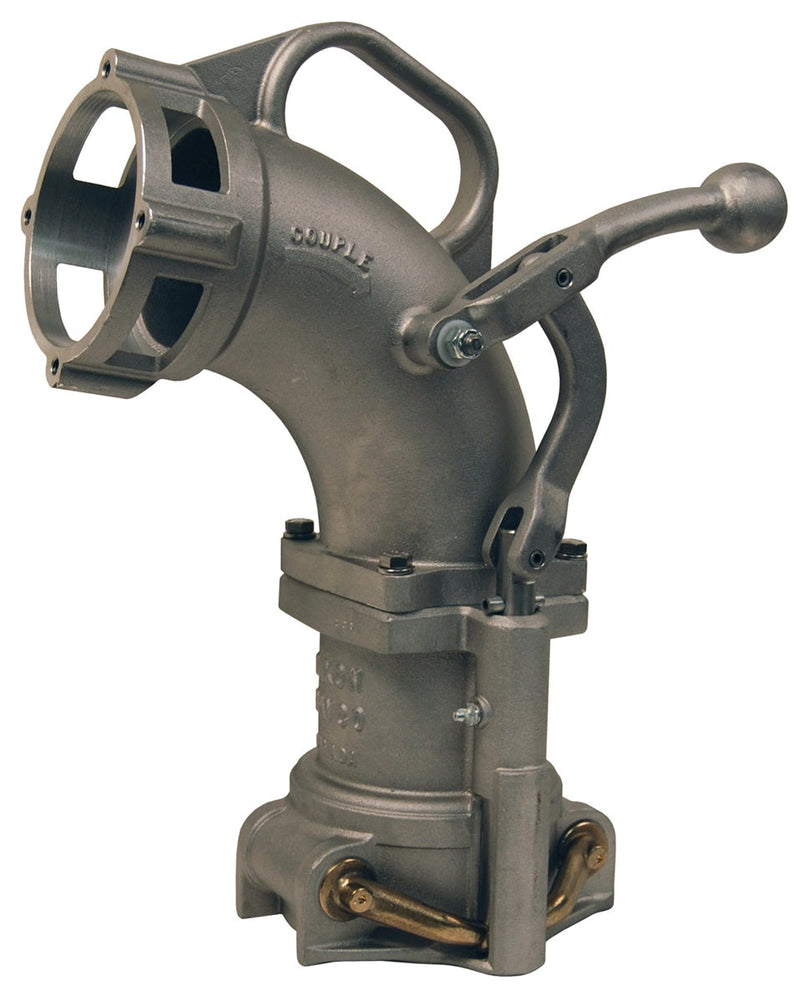

6200XT by Dixon Valve | 6200-Series | Side Lever Type Drop Elbow | 4" Size | Tall Elbow with Anti-Spill Sleeve, without Inlet Connection | Aluminum

6200XT by Dixon Valve | 6200-Series | Side Lever Type Drop Elbow | 4" Size | Tall Elbow with Anti-Spill Sleeve, without Inlet Connection | Aluminum

Save $105.04 Save $105.04
$945.39
$945.39 - $945.39
$945.39
$840.35
$840.35 - $840.35
$840.35

Dixon Valve
Tank Truck | 6200-Series | Side Lever Type Drop Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 6200XT Dixon
Brand: Bayco
Series: 6200-Series
Shape (Orientation): Non-Standard Elbow
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Most parts are common through the Bayco elbow line, making any necessary maintenance a breeze.
  • Grease nipple enables the greasing of the lever stem, and Acetal bushings help keep everything moving smoothly, even in the harshest of conditions.
  • Bolt on inlets allow the inlet to be changed without having to worry about galling of threaded inlets.
  • Ball lever handle enables the operator to easily and positively engage the locking arms, onto the underground adapter.
Construction:
  • Cast aluminum modular construction.
  • Handle and cam arms: brass with nitrile rubber gasket.
  • Bolts on inlet end: stainless steel.
  • Sight glass: acrylic with nitrile rubber seals.
Part Number Size Inlet Overall Height Ground Clearance Fuel Compatibility
6200 4" Elbow Only, without Inlet Connection 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200C 4" Elbow with 3" Adapter Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200A 4" Elbow with 4" Adapter Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200B 4" Elbow with 3" Coupler Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200AT 4" Elbow with 4" Adapter Inlet and Anti-Spill Sleeve 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200D 4" Elbow with 4" Coupler Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200X 4" Tall Elbow Only, without Inlet Connection 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XC 4" Tall Elbow with 3" Adapter Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XA 4" Tall Elbow with 4" Adapter Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XB 4" Tall Elbow with 3" Coupler Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XT 4" Tall Elbow with Anti-Spill Sleeve, without Inlet Connection 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XAT 4" Tall Elbow with 4" Adapter Inlet and Anti-Spill Sleeve 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XD 4" Tall Elbow with 4" Coupler Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
