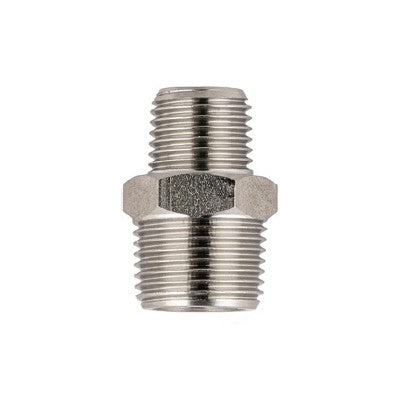

62020-1/4"-3/8" AIGNEP | 60/62 Series | Stainless Steel Reducing Nipple | Taper | 1/4" BSPT Male x 3/8" BSPT Male
62020-1/4"-3/8 by AIGNEP | 60/62 Series | Reducing Nipple | Taper | 1/4" BSPT Male x 3/8" BSPT Male | Stainless Steel
62020-1/4"-3/8" AIGNEP | 60/62 Series | Stainless Steel Reducing Nipple | Taper | 1/4" BSPT Male x 3/8" BSPT Male

62020-1/4"-3/8 by AIGNEP | 60/62 Series | Reducing Nipple | Taper | 1/4" BSPT Male x 3/8" BSPT Male | Stainless Steel

Save $0.10 Save $0.10
$10.41
$10.41 - $10.41
$10.41
$10.31
$10.31 - $10.31
$10.31
Specifications for Variant SKU: 62020-1/4-3/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male BSPT, 3/8in Male BSPT
Material(s): Stainless Steel

Reducer Nipple - BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

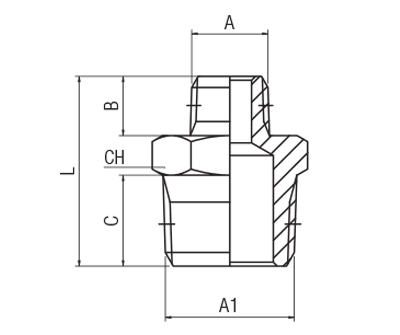

Product Number A BSPT A1 BSPT B C L CH
62020-1/8-1/4 1/8" 1/4" 7.5 mm 11 mm 23.5 mm 14 mm
62020-1/8-3/8 1/8" 3/8" 7.5 mm 11.5 mm 24 mm 17 mm
62020-1/4-3/8 1/4" 3/8" 11 mm 11.5 mm 27.5 mm 17 mm
62020-1/4-1/2 1/4" 1/2" 11 mm 14 mm 30.5 mm 22 mm
62020-3/8-1/2 3/8" 1/2" 11.5 mm 14 mm 31 mm 22 mm
62020-1/2-3/4 1/2" 3/4" 14 mm 16.5 mm 31 mm 27 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
