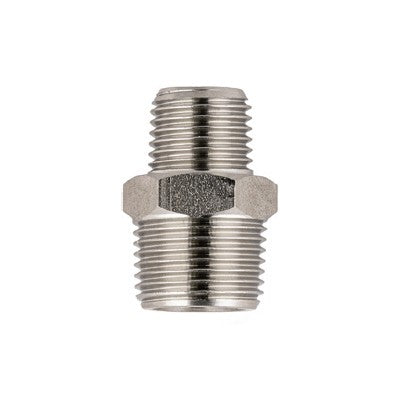

62020-1/8"-1/4" AIGNEP | 60/62 Series | Stainless Steel Reducing Nipple | Taper | 1/8" BSPT Male x 1/4" BSPT Male

62020-1/8"-1/4 by AIGNEP | 60/62 Series | Reducing Nipple | Taper | 1/8" BSPT Male x 1/4" BSPT Male | Stainless Steel

Save $7.27

$19.96

$19.96 - $19.96

$19.96

$12.69

$12.69 - $12.69

$12.69

Specifications for Variant SKU: 62020-1/8-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male BSPT, 1/4in Male BSPT
Material(s):	Stainless Steel

Reducer Nipple - BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

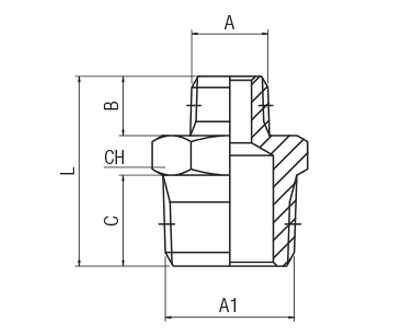

Product Number	A BSPT	A1 BSPT	B	C	L	CH
62020-1/8-1/4	1/8"	1/4"	7.5 mm	11 mm	23.5 mm	14 mm
62020-1/8-3/8	1/8"	3/8"	7.5 mm	11.5 mm	24 mm	17 mm
62020-1/4-3/8	1/4"	3/8"	11 mm	11.5 mm	27.5 mm	17 mm
62020-1/4-1/2	1/4"	1/2"	11 mm	14 mm	30.5 mm	22 mm
62020-3/8-1/2	3/8"	1/2"	11.5 mm	14 mm	31 mm	22 mm
62020-1/2-3/4	1/2"	3/4"	14 mm	16.5 mm	31 mm	27 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
