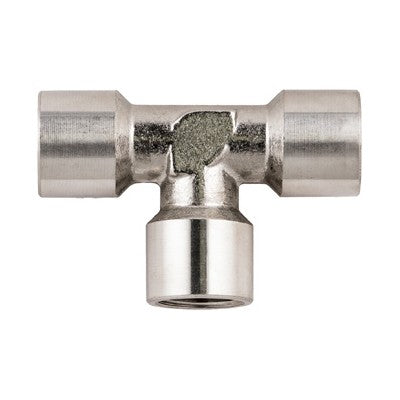

62400-1/2" AIGNEP | 60/62 Series | Stainless Steel Female Tee | 1/2" BSPP Female

62400-1/2 by AIGNEP | 60/62 Series | Female | 1/2" BSPP Female | Tee | Stainless Steel

Save $14.09

$76.73

$76.73 - $76.73

$76.73

$62.64

$62.64 - $62.64

$62.64

Specifications for Variant SKU: 62400-1/2 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	1/2in Female BSPP, 1/2in Female BSPP, 1/2in Female BSPP, Some Ends Match
Material(s):	Stainless Steel

Female Tee - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

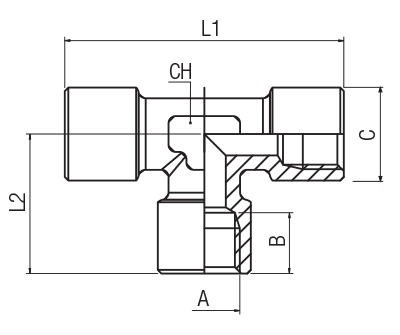

Product Number	A BSPP	B	C	L1	L2	CH
62400-1/8	1/8"	8.5 mm	13 mm	37 mm	18.5 mm	12 mm
62400-1/4	1/4"	11 mm	16.5 mm	49 mm	24.5 mm	12 mm
62400-3/8	3/8"	12 mm	20.5 mm	54 mm	27 mm	15 mm
62400-1/2	1/2"	15 mm	25.5 mm	64 mm	32 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
