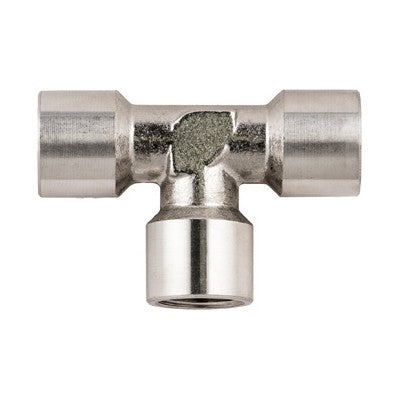

62400-1/4" AIGNEP | 60/62 Series | Stainless Steel Female Tee | 1/4" BSPP Female

62400-1/4 by AIGNEP | 60/62 Series | Female | 1/4" BSPP Female | Tee | Stainless Steel

Save $0.29

$29.34

$29.34 - $29.34

$29.34

$29.05

$29.05 - $29.05

$29.05

Quantity

Specifications for Variant SKU: 62400-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	1/4in Female BSPP, 1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s):	Stainless Steel

Female Tee - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

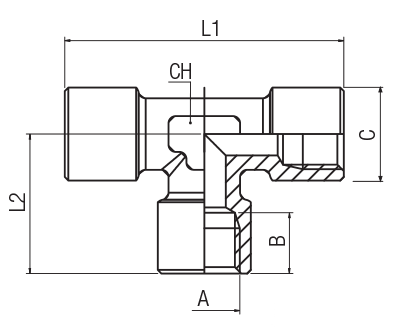

Product Number	A BSPP	B	C	L1	L2	CH
62400-1/8	1/8"	8.5 mm	13 mm	37 mm	18.5 mm	12 mm
62400-1/4	1/4"	11 mm	16.5 mm	49 mm	24.5 mm	12 mm
62400-3/8	3/8"	12 mm	20.5 mm	54 mm	27 mm	15 mm
62400-1/2	1/2"	15 mm	25.5 mm	64 mm	32 mm	20 mm
