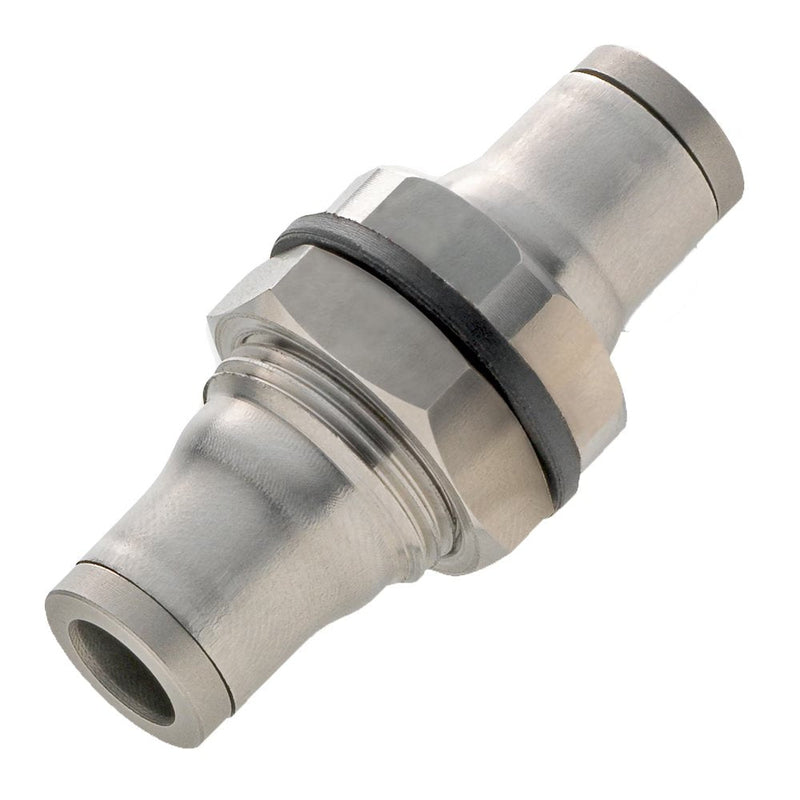

62PLSBH-10M by Parker | Prestolok PLS Push-to-Connect Fittings | Bulkhead Union | 10 mm Tube Size | 50 mm Length | Straight | Stainless Steel | Pack of 2

62PLSBH-10M by Parker | Prestolok PLS Push-to-Connect Fittings | Bulkhead Union | 10 mm Tube Size | 50 mm Length | Straight | Stainless Steel | Pack of 2

Save $123.06 Save $123.06
$307.65
$307.65 - $307.65
$307.65
$184.59
$184.59 - $184.59
$184.59

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:62PLSBH Bulkhead Union - Metric Tube

Package Quantity: 2 Units

Specifications for Variant SKU: 62PLSBH-10M Parker | 2 |
Series: 62PLSBH Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size F F1 L1 L2 T
62PLSBH-4M 4 mm 14 mm 13 mm 15 mm 18 mm 13 mm
62PLSBH-6M 6 mm 17 mm 17 mm 19 mm 21 mm 15 mm
62PLSBH-8M 8 mm 19 mm 19 mm 20 mm 22 mm 17 mm
62PLSBH-10M 10 mm 22 mm 22 mm 24 mm 26 mm 21 mm
62PLSBH-12M 12 mm 24 mm 24 mm 25 mm 26 mm 23 mm
