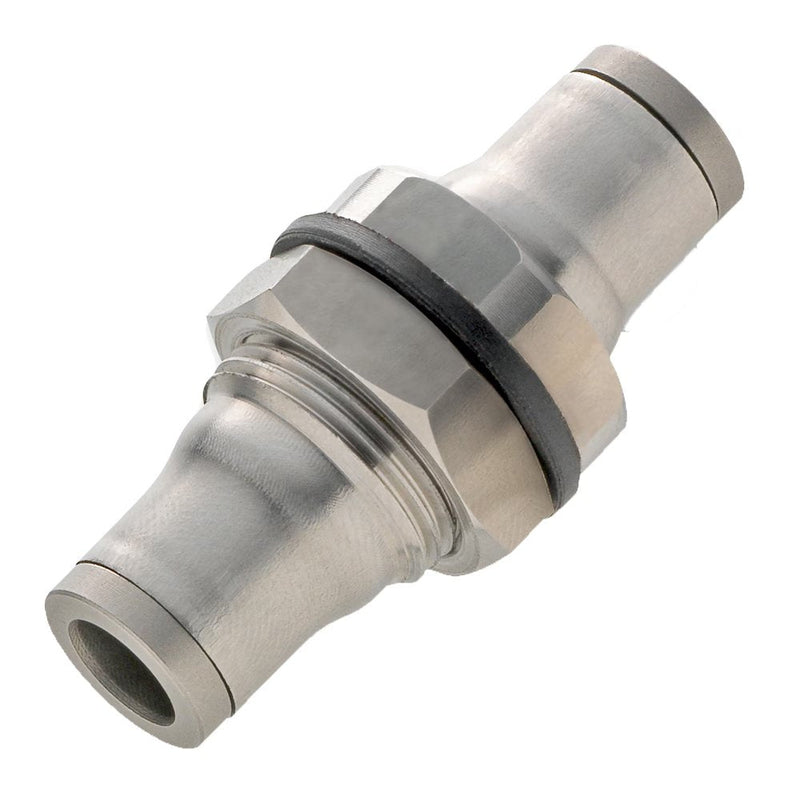

62PLSBH-12M by Parker | Prestolok PLS Push-to-Connect Fittings | Bulkhead Union | 12 mm Tube Size | 51 mm Length | Straight | Stainless Steel | Pack of 2

Save $210.31

$525.78

$525.78 - $525.78

$525.78

$315.47

$315.47 - $315.47

$315.47

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:62PLSBH Bulkhead Union - Metric Tube

Package Quantity: 2 Units

Specifications for Variant SKU: 62PLSBH-12M Parker \| 2 \|
Series:	62PLSBH Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	Stainless steel 316L collet Stainless steel 316L body FKM seal Stainless steel 316L backup washer Chemical, corrosion, and abrasion resistance Hygienic design reduces retention zones for Easy cleaning NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Petrochemical Life Science Pulp and Paper Food Processing Wash Down
Compatible Media:	Food Fluids Chemicals Cleaning Agents Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Semi-rigid nylon Polyethylene Polyurethane 95 Durometer Shore A Stainless Steel (grooved) Copper (grooved) FEP


Part Number	Tube Size	F	F1	L1	L2	T
62PLSBH-4M	4 mm	14 mm	13 mm	15 mm	18 mm	13 mm
62PLSBH-6M	6 mm	17 mm	17 mm	19 mm	21 mm	15 mm
62PLSBH-8M	8 mm	19 mm	19 mm	20 mm	22 mm	17 mm
62PLSBH-10M	10 mm	22 mm	22 mm	24 mm	26 mm	21 mm
62PLSBH-12M	12 mm	24 mm	24 mm	25 mm	26 mm	23 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
