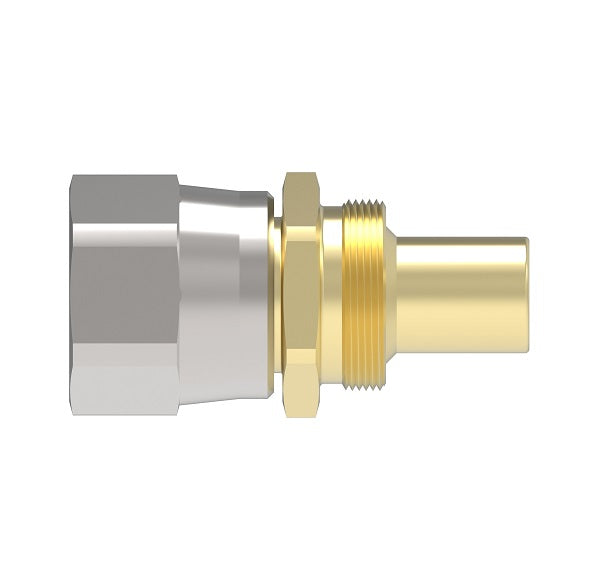

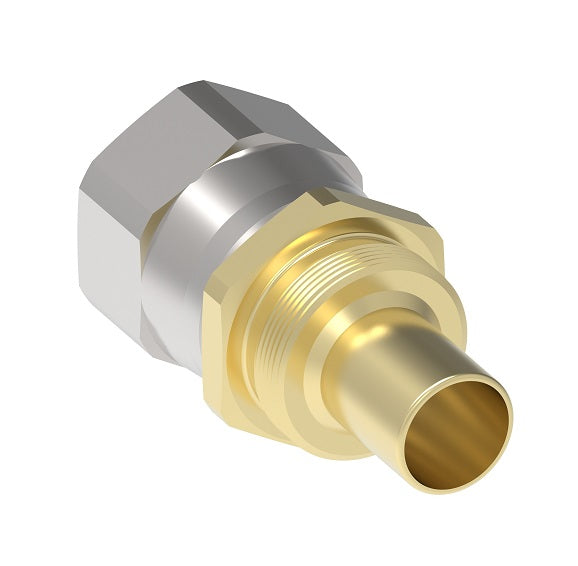

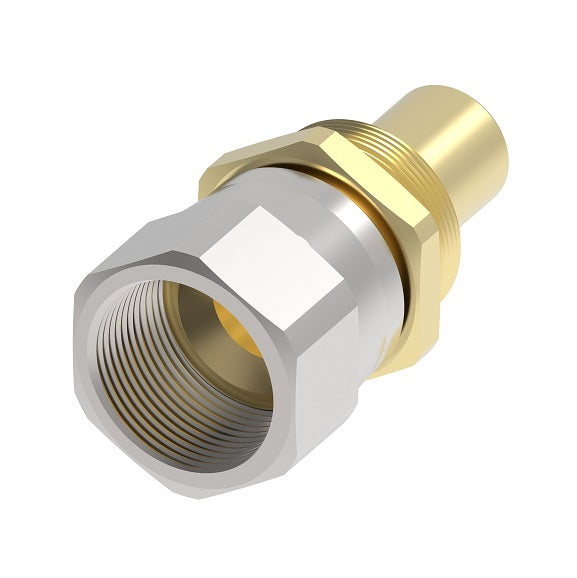

63-473A-20 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -20 Female 37° JIC Flare Swivel x -20 Reusable Hose End | Brass & Steel

63-473A-20 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -20 Female 37° JIC Flare Swivel x -20 Reusable Hose End | Brass & Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,003.40 - $1,003.40

$1,003.40

$1,003.40 - $1,003.40

$1,003.40

Aeroquip® by Danfoss
Reusable PTFE Hose Fitting - Nipple Assembly - Female 37° JIC Flare Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 63-473A-20 Danfoss \| 10 \|
Brand:	Aeroquip
Ends Configuration:	1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s):	Brass, Steel
Applicable Specs & Approvals:	Swivel
Compatible with the following Series:	2807 Series


Carbon Steel Part Number	Stainless Steel Part Number	Brass & Steel Part Number	Tube OD Size	Thread	A	B	D	EØ
473A-3S	-	-	-	-	-	-	-	-
473A-4S	473A-4C	63-473A-4	1/4"	7/16-20	1.58"	0.76	1.13"	0.16"
-	473A-5C	63-473A-5	5/16"	1/2-20	1.68"	0.77"	1.17"	.23"
473A-6S	473A-6C	63-473A-6	3/8	9/16-18	1.74"	.82"	1.22"	.26"
473A-8S	473A-8C	63-473A-8	1/2"	3/4-16	1.98"	0.91"	1.35"	0.38"
473A-10S	473A-10C	63-473A-10	5/8"	7/8-14	2.22"	1.02"	1.54"	0.47"
473A-12S	473A-12C	63-473A-12	3/4"	1-1/16-12	2.33"	1.10"	1.67"	0.59"
-	473A-16C	63-473A-16	1"	1-5/16-12	2.52"	1.31"	1.91"	0.83"
-	473A-20C	63-473A-20	1-1/4"	1-5/8-12	2.92"	1.63"	2.27"	1.06"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
