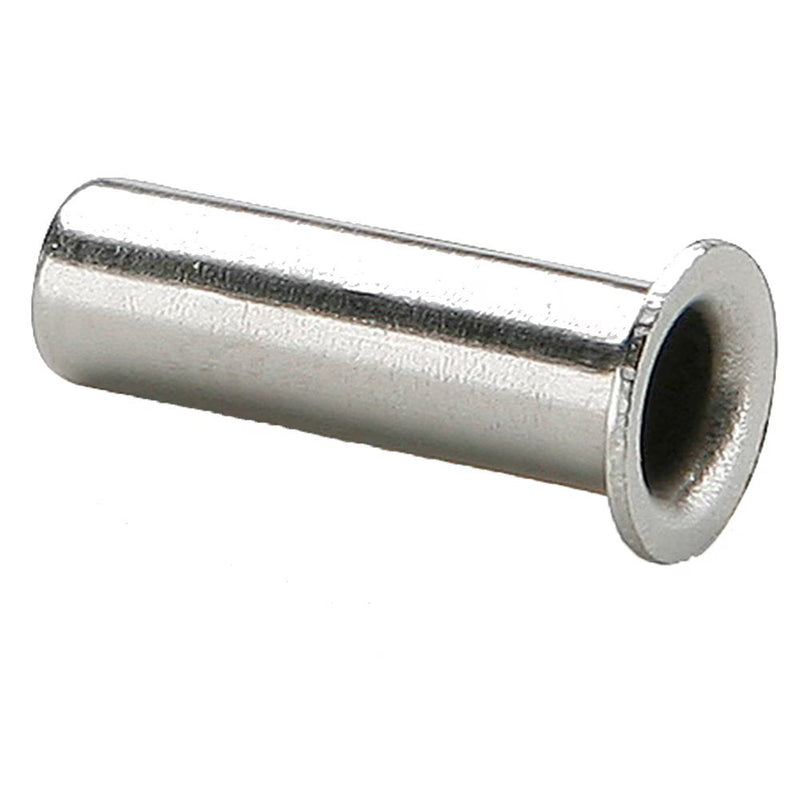

63NTA-12 by Parker | Air Brake–NTA® Fittings | 3/4" Tube Size | 1.04" Length | Straight | Stainless Steel | Pack of 50

Save $20.37

$224.09

$224.09 - $224.09

$224.09

$203.72

$203.72 - $203.72

$203.72

by Parker Hannifin
Air Brake–NTA® Fittings:Stainless Steel Insert 63NTA

Package Quantity: 50 Units

Quantity

Specifications for Variant SKU: 63NTA-12 Parker \| 50 \|
Brand:	Air Brake–NTA®
Series:	63NTA Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 & SAE J1131 Pre-applied Thread Sealant Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	L	OD
63NTA-4	1/4"	.53"	.163"
63NTA-6	3/8"	.64"	.245"
63NTA-8	1/2"	.81"	.370"
63NTA-10	5/8"	.86"	.434"
63NTA-12	3/4"	1.04"	.559"
