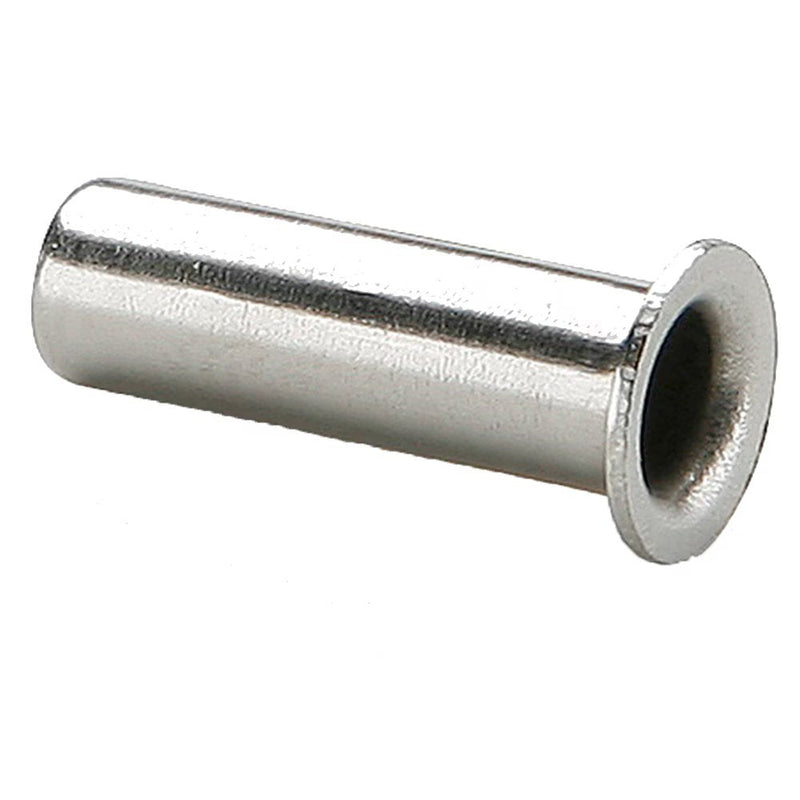

63NTA-6 by Parker | Air Brake–NTA® Fittings | 3/8" Tube Size | .64" Length | Straight | Stainless Steel | Pack of 100

63NTA-6 by Parker | Air Brake–NTA® Fittings | 3/8" Tube Size | .64" Length | Straight | Stainless Steel | Pack of 100

Save $6.95 Save $6.95
$72.28
$72.28 - $72.28
$72.28
$65.33
$65.33 - $65.33
$65.33

by Parker Hannifin
Air Brake–NTA® Fittings:Stainless Steel Insert 63NTA

Package Quantity: 100 Units

Specifications for Variant SKU: 63NTA-6 Parker | 100 |
Brand: Air Brake–NTA®
Series: 63NTA Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size L OD
63NTA-4 1/4" .53" .163"
63NTA-6 3/8" .64" .245"
63NTA-8 1/2" .81" .370"
63NTA-10 5/8" .86" .434"
63NTA-12 3/4" 1.04" .559"
