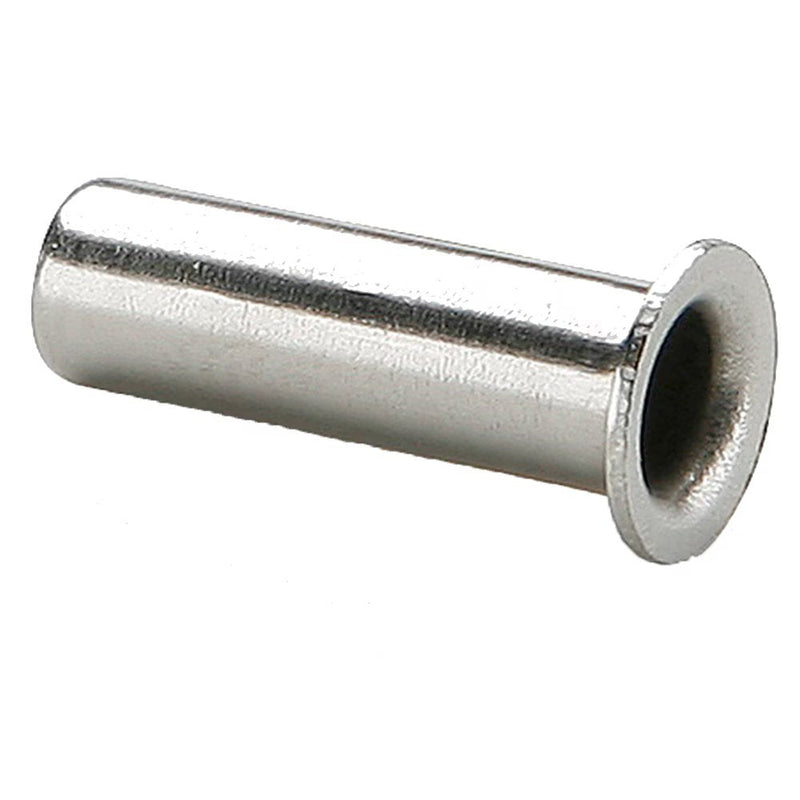

63NTA-6 by Parker | Air Brake–NTA® Fittings | 3/8" Tube Size | .64" Length | Straight | Stainless Steel | Pack of 100

Save $43.55

$108.88

$108.88 - $108.88

$108.88

$65.33

$65.33 - $65.33

$65.33

by Parker Hannifin
Air Brake–NTA® Fittings:Stainless Steel Insert 63NTA

Package Quantity: 100 Units

Specifications for Variant SKU: 63NTA-6 Parker \| 100 \|
Brand:	Air Brake–NTA®
Series:	63NTA Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 & SAE J1131 Pre-applied Thread Sealant Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	L	OD
63NTA-4	1/4"	.53"	.163"
63NTA-6	3/8"	.64"	.245"
63NTA-8	1/2"	.81"	.370"
63NTA-10	5/8"	.86"	.434"
63NTA-12	3/4"	1.04"	.559"
