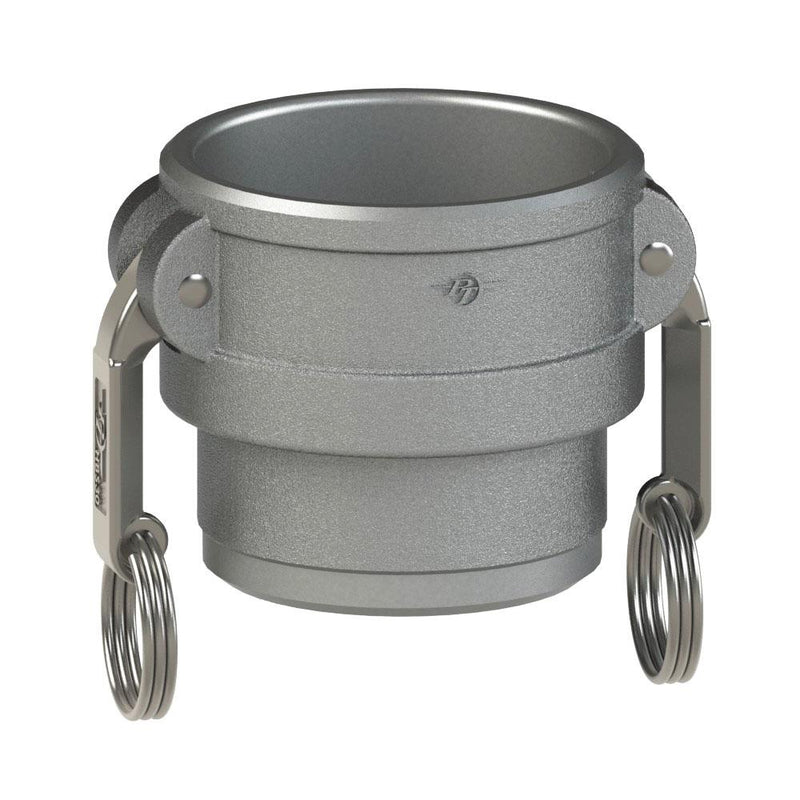

64620711 (07DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 3/4" Coupler x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

64620711 (07DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 3/4" Coupler x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Save $37.81 Save $37.81
$101.88
$101.88 - $101.88
$101.88
$64.07
$64.07 - $64.07
$64.07

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64620711 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3/4in Female Cam & Groove, 3/4in Weld End
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Max. Allowable
Working Press.
(PSI)*
07DWB 64620711 3/4" 4.51" 2.11" 0.78" 2.00" 250 PSI
10DWB 64621013 1" 5.10" 2.44" 0.97" 2.51" 250 PSI
12DWB 64621211 1-1/4" 6.86" 3.26" 1.25" 2.89" 250 PSI
20DWB 64622011 2" 7.54" 3.94" 1.75" 3.09" 250 PSI
30DWB 64623016 3" 9.56" 5.46" 2.83" 3.82" 200 PSI
40DWB 64624015 4" 10.66" 6.56" 3.50" 4.00" 150 PSI
50DWB 64625016 5" 11.67" 7.57" 4.50" 4.20" 75 PSI
60DWB 64626012 6" 16.26" 10.16" 5.50" 4.54" 75 PSI
80DWB 64628028 8" 18.23" 12.13" 7.50" 4.80" 50 PSI
100DWB 64629011 10" 20.66" 14.56" 9.40" 5.50" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
