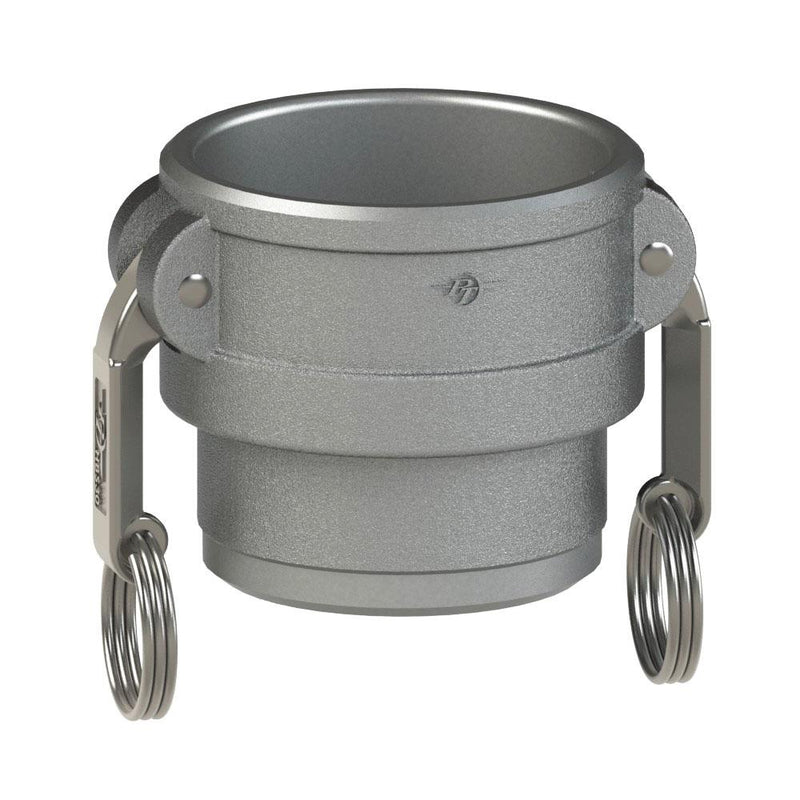

64628028 (80DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 8" Coupler x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Name: 64628028 (80DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 8" Coupler x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel
Brand: PT-Coupling
SKU: 64628028 PT-Coupling
Price: 1251.15 USD
Availability: InStock

Save $738.58

$1,989.73

$1,989.73 - $1,989.73

$1,989.73

$1,251.15

$1,251.15 - $1,251.15

$1,251.15

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64628028 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	8in Female Cam & Groove, 8in Weld End
Material(s):	316 Stainless Steel

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Max. Allowable Working Press. (PSI)*
07DWB	64620711	3/4"	4.51"	2.11"	0.78"	2.00"	250 PSI
10DWB	64621013	1"	5.10"	2.44"	0.97"	2.51"	250 PSI
12DWB	64621211	1-1/4"	6.86"	3.26"	1.25"	2.89"	250 PSI
20DWB	64622011	2"	7.54"	3.94"	1.75"	3.09"	250 PSI
30DWB	64623016	3"	9.56"	5.46"	2.83"	3.82"	200 PSI
40DWB	64624015	4"	10.66"	6.56"	3.50"	4.00"	150 PSI
50DWB	64625016	5"	11.67"	7.57"	4.50"	4.20"	75 PSI
60DWB	64626012	6"	16.26"	10.16"	5.50"	4.54"	75 PSI
80DWB	64628028	8"	18.23"	12.13"	7.50"	4.80"	50 PSI
100DWB	64629011	10"	20.66"	14.56"	9.40"	5.50"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
