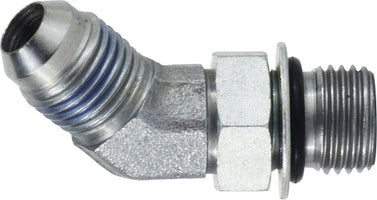

6802NWO1216 Midland Hydraulic JIC to O-Ring 45° Elbow Connector - 1-1/16-12 Male JIC 37° Flare x 1-5/16-12 Male O-Ring Boss - Steel

6802NWO1216 by Midland | Hydraulic JIC to O-Ring Connector | 1-1/16-12 Male JIC 37° Flare x 1-5/16-12 Male O-Ring Boss | 45° Elbow | Steel

Save $12.51 Save $12.51
$31.27
$31.27 - $31.27
$31.27
$18.76
$18.76 - $18.76
$18.76

Midland Industries
Hydraulic Adapters: JIC to O-Ring 45° Elbow Connector - Steel

Inventory @ Manufacturers Warehouse: 100 Units
Specifications for Variant SKU: 6802NWO1216 Midland
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Male JIC, 1in Male O-Ring Boss
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Specifications
Specifications:
  • SAE 070320
  • MS 51528
Technical Info:
Crossover Series:
6802 2061 V50X 1240R C5365
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare
Thread
(1)		 Male O-Ring Boss
(2)		 Male O-Ring Boss
Thread
(2)
6802NWO2
(6802-NWO-2)		 1/8" 5/16-24 1/8" 5/16-24
6802NWO4
(6802-NWO-4)		 1/4" 7/16-20 1/4" 7/16-20
6802NWO46 1/4" 7/16-20 3/8" 9/16-18
6802NWO48 1/4" 7/16-20 1/2" 3/4-16
6802NWO5 5/16" 1/2-20 5/16" 1/2-20
6802NWO64 3/8" 9/16-18 1/4" 7/16-20
6802NWO6
(6802-NWO-6) 		3/8" 9/16-18 3/8" 9/16-18
6802NWO68 3/8" 9/16-18 1/2" 3/4-16
6802NWO610 3/8" 9/16-18 5/8" 7/8-14
6802NWO8
(6802-NWO-8) 		1/2" 3/4-16 1/2" 3/4-16
6802NWO86
(6802-NWO-8-6) 		1/2" 3/4-16 3/8" 9/16-18
6802NWO810
(6802-NWO-8-10) 		1/2" 3/4-16 5/8" 7/8-14
6802NWO812 1/2" 3/4-16 3/4" 1-1/16-12
6802NWO10
(6802-NWO-10) 		5/8" 7/8-14 5/8" 7/8-14
6802NWO108
(6802-NWO-10-8) 		5/8" 7/8-14 1/2" 3/4-16
6802NWO1012 5/8" 7/8-14 3/4" 1-1/16-12
6802NWO1210 3/4" 1-1/16-12 5/8" 7/8-14
6802NWO12
(6802-NWO-12) 		3/4" 1-1/16-12 3/4" 1-1/16-12
6802NWO1216 3/4" 1-1/16-12 1" 1-5/16-12
6802NWO14 7/8" 1-13/16-12 7/8" 1-13/16-12
6802NWO16
(6802-NWO-16) 		1" 1-5/16-12 1" 1-5/16-12
6802NWO1612 1" 1-5/16-12 3/4" 1-1/16-12
6802NWO20
(6802-NWO-20) 		1-1/4" 1-5/8-12 1-1/4" 1-5/8-12
6802NWO24
(6802-NWO-24) 		1-1/2" 1-7/8-12 1-1/2" 1-7/8-12
