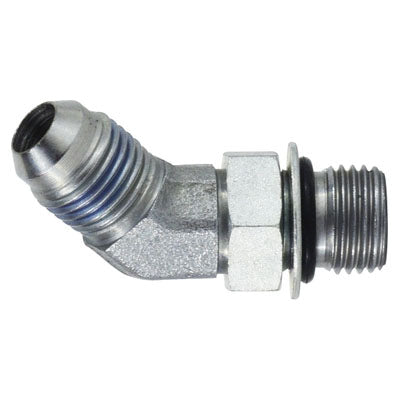

6802NWO48 by Midland | Hydraulic JIC to O-Ring Connector | 1/4" Male JIC 37° Flare x 1/2" Male O-Ring Boss | 45° Elbow | Steel

Name: 6802NWO48 by Midland | Hydraulic JIC to O-Ring Connector | 1/4" Male JIC 37° Flare x 1/2" Male O-Ring Boss | 45° Elbow | Steel
Brand: Midland Industries
SKU: 6802NWO48 Midland
Price: 7.9 USD
Availability: InStock

Save $5.27

$13.17

$13.17 - $13.17

$13.17

$7.90

$7.90 - $7.90

$7.90

Midland Industries
Hydraulic Adapters: JIC to O-Ring 45° Elbow Connector - Steel

Inventory @ Manufacturers Warehouse: 162 Units

Specifications for Variant SKU: 6802NWO48 Midland
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Male JIC, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
SAE 070320 MS 51528
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
6802	2061	V50X	1240R	C5365


Part Number	Male JIC 37° Flare (1)	Male JIC 37° Flare Thread (1)	Male O-Ring Boss (2)	Male O-Ring Boss Thread (2)
6802NWO2 (6802-NWO-2)	1/8"	5/16-24	1/8"	5/16-24
6802NWO4 (6802-NWO-4)	1/4"	7/16-20	1/4"	7/16-20
6802NWO46	1/4"	7/16-20	3/8"	9/16-18
6802NWO48	1/4"	7/16-20	1/2"	3/4-16
6802NWO5	5/16"	1/2-20	5/16"	1/2-20
6802NWO64	3/8"	9/16-18	1/4"	7/16-20
6802NWO6 (6802-NWO-6)	3/8"	9/16-18	3/8"	9/16-18
6802NWO68	3/8"	9/16-18	1/2"	3/4-16
6802NWO610	3/8"	9/16-18	5/8"	7/8-14
6802NWO8 (6802-NWO-8)	1/2"	3/4-16	1/2"	3/4-16
6802NWO86 (6802-NWO-8-6)	1/2"	3/4-16	3/8"	9/16-18
6802NWO810 (6802-NWO-8-10)	1/2"	3/4-16	5/8"	7/8-14
6802NWO812	1/2"	3/4-16	3/4"	1-1/16-12
6802NWO10 (6802-NWO-10)	5/8"	7/8-14	5/8"	7/8-14
6802NWO108 (6802-NWO-10-8)	5/8"	7/8-14	1/2"	3/4-16
6802NWO1012	5/8"	7/8-14	3/4"	1-1/16-12
6802NWO1210	3/4"	1-1/16-12	5/8"	7/8-14
6802NWO12 (6802-NWO-12)	3/4"	1-1/16-12	3/4"	1-1/16-12
6802NWO1216	3/4"	1-1/16-12	1"	1-5/16-12
6802NWO14	7/8"	1-13/16-12	7/8"	1-13/16-12
6802NWO16 (6802-NWO-16)	1"	1-5/16-12	1"	1-5/16-12
6802NWO1612	1"	1-5/16-12	3/4"	1-1/16-12
6802NWO20 (6802-NWO-20)	1-1/4"	1-5/8-12	1-1/4"	1-5/8-12
6802NWO24 (6802-NWO-24)	1-1/2"	1-7/8-12	1-1/2"	1-7/8-12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
