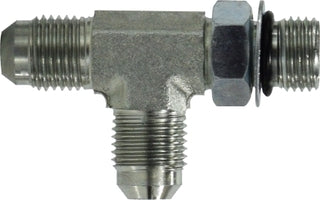

6804NWO1612 by Midland | Hydraulic JIC to O-Ring Run | 1" Male JIC 37° Flare x 3/4" Male O-Ring Boss x 1" Male JIC 37° Flare | Tee | Steel

Name: 6804NWO1612 by Midland | Hydraulic JIC to O-Ring Run | 1" Male JIC 37° Flare x 3/4" Male O-Ring Boss x 1" Male JIC 37° Flare | Tee | Steel
Brand: Midland Industries
SKU: 6804NWO1612 Midland
Price: 13.17 USD
Availability: InStock

Save $8.78

$21.95

$21.95 - $21.95

$21.95

$13.17

$13.17 - $13.17

$13.17

Midland Industries
Hydraulic Adapters: JIC to O-Ring Run Tee - Steel

Specifications for Variant SKU: 6804NWO1612 Midland
Shape (Orientation):	Tee
Ends Configuration:	1in Male JIC, 3/4in Male O-Ring Boss, 1in Male JIC, Some Ends Match
Material(s):	Steel

Specifications:
SAE 070428 MS 51530
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
6804	203005R	R50X	1266R	C5716


Part Number	Male JIC 37° Flare (1 & 3)	Male JIC 37° Flare Thread (1 & 3)	Male O-Ring Boss (2)	Male O-Ring Boss Thread (2)
6804NWO4 (6804-NWO-4)	1/4"	7/16-20	1/4"	7/16-20
6804NWO5	5/16"	1/2-20	5/16"	1/2-20
6804NWO6 (6804-NWO-6)	3/8" x 1/2"	9/16-18	3/8"	9/16-18
6804NWO68	3/8" x 1/2"	9/16-18 x 3/4-16	3/8"	9/16-18
6804NWO8 (6804-NWO-8)	1/2"	3/4-16	1/2"	3/4-16
6804NWO10 (6804-NWO-10)	5/8"	7/8-14	5/8"	7/8-14
6804NWO12 (6804-NWO-12)	3/4"	1-1/16-12	3/4"	1-1/16-12
6804NWO1612	1"	1-5/16-12	3/4"	1-1/16-12
6804NWO16 (6804-NWO-16)	1"	1-5/16-12	1"	1-5/16-12
6804NWO20	1-1/4"	1-5/8-12	1-1/4"	1-5/8-12
6804NWO24	1-1/2"	1-7/8-12	1-1/2"	1-7/8-12
