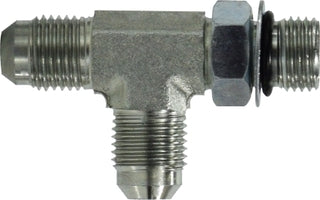

6804NWO24 by Midland | Hydraulic JIC to O-Ring Run | 1-1/2" Male JIC 37° Flare x 1-1/2" Male O-Ring Boss x 1-1/2" Male JIC 37° Flare | Tee | Steel

6804NWO24 by Midland | Hydraulic JIC to O-Ring Run | 1-1/2" Male JIC 37° Flare x 1-1/2" Male O-Ring Boss x 1-1/2" Male JIC 37° Flare | Tee | Steel

Save $23.97 Save $23.97
$59.93
$59.93 - $59.93
$59.93
$35.96
$35.96 - $35.96
$35.96

Midland Industries
Hydraulic Adapters: JIC to O-Ring Run Tee - Steel

Inventory @ Manufacturers Warehouse: 202 Units
Specifications for Variant SKU: 6804NWO24 Midland
Shape (Orientation): Tee
Ends Configuration: 1-1/2in Male JIC, 1-1/2in Male O-Ring Boss, 1-1/2in Male JIC, Some Ends Match
Material(s): Steel
Specifications:
  • SAE 070428
  • MS 51530
Technical Info:
Crossover Series:
6804 203005R R50X 1266R C5716
Part Number Male JIC 37° Flare
(1 & 3)		 Male JIC 37° Flare
Thread
(1 & 3)		 Male O-Ring Boss
(2)		 Male O-Ring Boss
Thread
(2)
6804NWO4
(6804-NWO-4)		 1/4" 7/16-20 1/4" 7/16-20
6804NWO5 5/16" 1/2-20 5/16" 1/2-20
6804NWO6
(6804-NWO-6)		 3/8" x 1/2" 9/16-18 3/8" 9/16-18
6804NWO68 3/8" x 1/2" 9/16-18 x 3/4-16 3/8" 9/16-18
6804NWO8
(6804-NWO-8) 		1/2" 3/4-16 1/2" 3/4-16
6804NWO10
(6804-NWO-10) 		5/8" 7/8-14 5/8" 7/8-14
6804NWO12
(6804-NWO-12) 		3/4" 1-1/16-12 3/4" 1-1/16-12
6804NWO1612 1" 1-5/16-12 3/4" 1-1/16-12
6804NWO16
(6804-NWO-16) 		1" 1-5/16-12 1" 1-5/16-12
6804NWO20 1-1/4" 1-5/8-12 1-1/4" 1-5/8-12
6804NWO24 1-1/2" 1-7/8-12 1-1/2" 1-7/8-12
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
