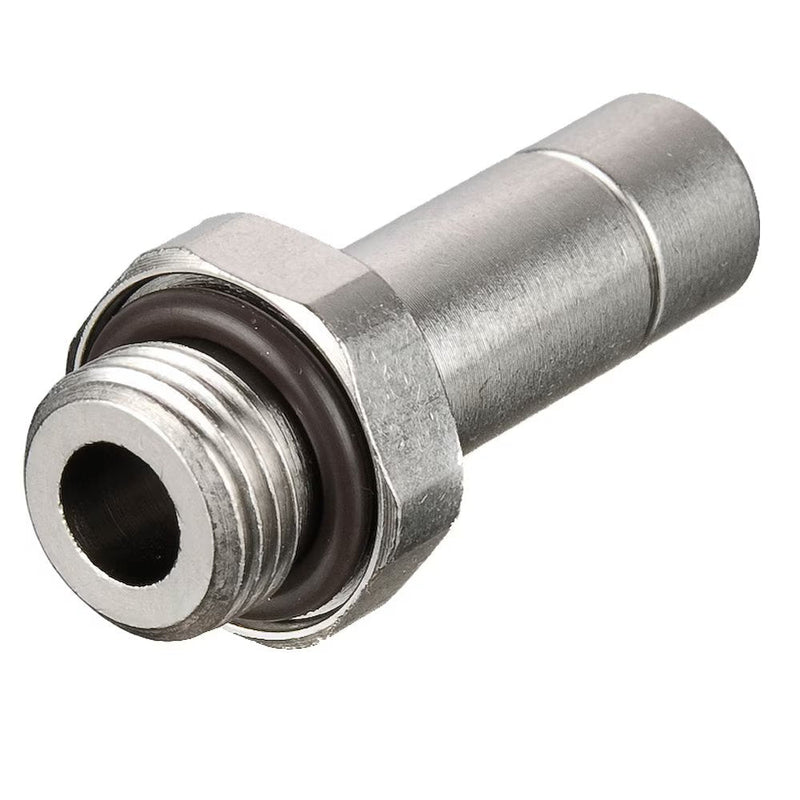

68PLMSP-10M-4G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 10 mm Standpipe x 1/4" Male BSPP Threads | 17.50 mm Height | 34.50 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

68PLMSP-10M-4G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 10 mm Standpipe x 1/4" Male BSPP Threads | 17.50 mm Height | 34.50 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $119.25 Save $119.25
$298.12
$298.12 - $298.12
$298.12
$178.87
$178.87 - $178.87
$178.87

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:68PLMSP Male Standpipe Metric Tube to BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLMSP-10M-4G Parker | 10 |
Series: 68PLMSP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPP / M5 F H H1 K
68PLMSP-4M-M5 4 mm M5X0.8 13 mm 25.50 mm 7.00 mm 14.00 mm
68PLMSP-4M-2G 4 mm 1/8" 16 mm 26.50 mm 7.00 mm 17.50 mm
68PLMSP-4M-4G 4 mm 1/4" 8 mm 25.00 mm 7.50 mm 8.70 mm
68PLMSP-6M-2G 6 mm 1/8" 13 mm 28.00 mm 6.50 mm 14.00 mm
68PLMSP-6M-4G 6 mm 1/4" 16 mm 29.00 mm 6.50 mm 17.50 mm
68PLMSP-8M-2G 8 mm 1/8" 13 mm 28.50 mm 6.50 mm 14.00 mm
68PLMSP-8M-4G 8 mm 1/4" 16 mm 29.50 mm 6.50 mm 17.50 mm
68PLMSP-8M-6G 8 mm 3/8" 20 mm 30.50 mm 7.50 mm 22.00 mm
68PLMSP-10M-4G 10 mm 1/4" 16 mm 34.50 mm 6.50 mm 17.50 mm
68PLMSP-10M-6G 10 mm 3/8" 20 mm 35.50 mm 7.50 mm 22.00 mm
68PLMSP-10M-8G 10 mm 1/2" 24 mm 37.00 mm 7.50 mm 26.00 mm
68PLMSP-12M-6G 12 mm 3/8" 20 mm 36.50 mm 7.50 mm 22.00 mm
68PLMSP-12M-8G 12 mm 1/2" 24 mm 38.00 mm 7.50 mm 26.00 mm
68PLMSP-14M-8G 14 mm 1/2" 24 mm 40.00 mm 8.00 mm 26.00 mm
