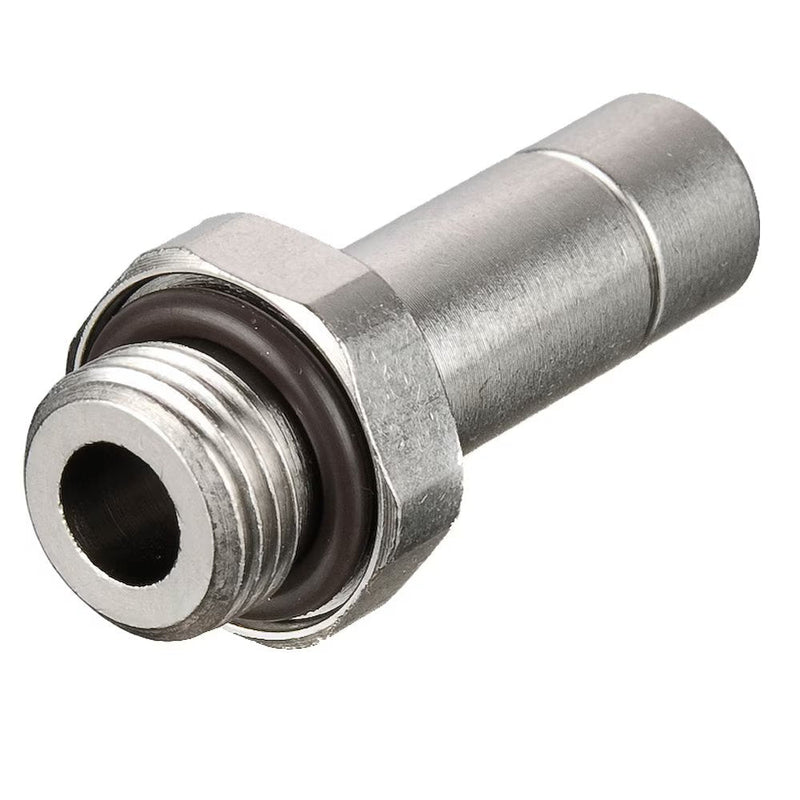

68PLMSP-8M-6G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 8 mm Standpipe x 3/8" Male BSPP Threads | 22.00 mm Height | 30.50 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $30.56

$251.23

$251.23 - $251.23

$251.23

$220.67

$220.67 - $220.67

$220.67

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:68PLMSP Male Standpipe Metric Tube to BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLMSP-8M-6G Parker \| 10 \|
Series:	68PLMSP Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	BSPP / M5	F	H	H1	K
68PLMSP-4M-M5	4 mm	M5X0.8	13 mm	25.50 mm	7.00 mm	14.00 mm
68PLMSP-4M-2G	4 mm	1/8"	16 mm	26.50 mm	7.00 mm	17.50 mm
68PLMSP-4M-4G	4 mm	1/4"	8 mm	25.00 mm	7.50 mm	8.70 mm
68PLMSP-6M-2G	6 mm	1/8"	13 mm	28.00 mm	6.50 mm	14.00 mm
68PLMSP-6M-4G	6 mm	1/4"	16 mm	29.00 mm	6.50 mm	17.50 mm
68PLMSP-8M-2G	8 mm	1/8"	13 mm	28.50 mm	6.50 mm	14.00 mm
68PLMSP-8M-4G	8 mm	1/4"	16 mm	29.50 mm	6.50 mm	17.50 mm
68PLMSP-8M-6G	8 mm	3/8"	20 mm	30.50 mm	7.50 mm	22.00 mm
68PLMSP-10M-4G	10 mm	1/4"	16 mm	34.50 mm	6.50 mm	17.50 mm
68PLMSP-10M-6G	10 mm	3/8"	20 mm	35.50 mm	7.50 mm	22.00 mm
68PLMSP-10M-8G	10 mm	1/2"	24 mm	37.00 mm	7.50 mm	26.00 mm
68PLMSP-12M-6G	12 mm	3/8"	20 mm	36.50 mm	7.50 mm	22.00 mm
68PLMSP-12M-8G	12 mm	1/2"	24 mm	38.00 mm	7.50 mm	26.00 mm
68PLMSP-14M-8G	14 mm	1/2"	24 mm	40.00 mm	8.00 mm	26.00 mm
