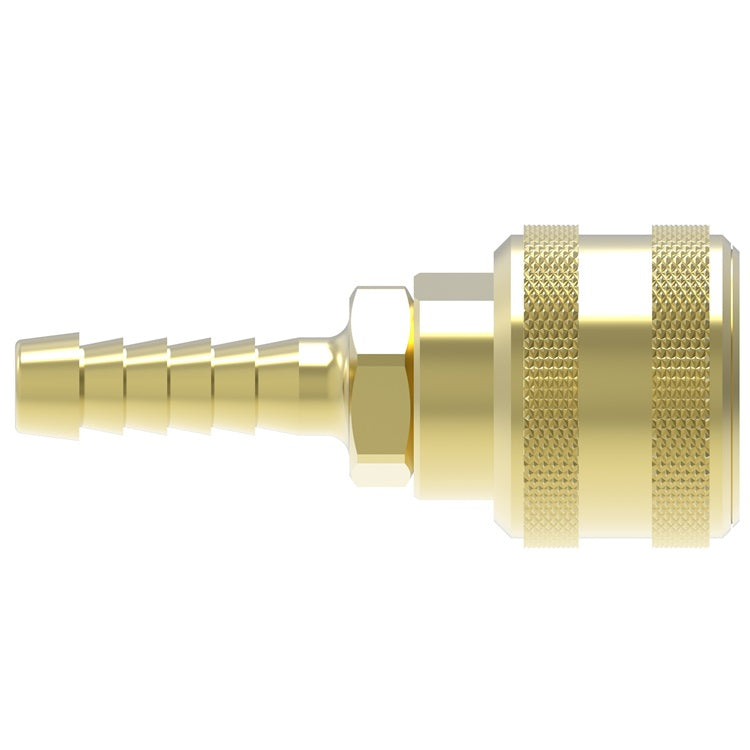

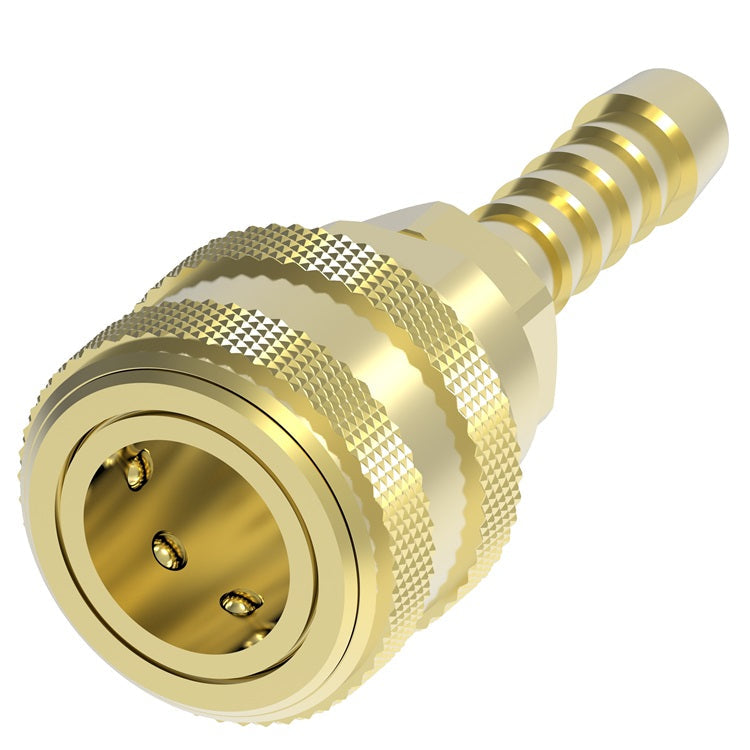

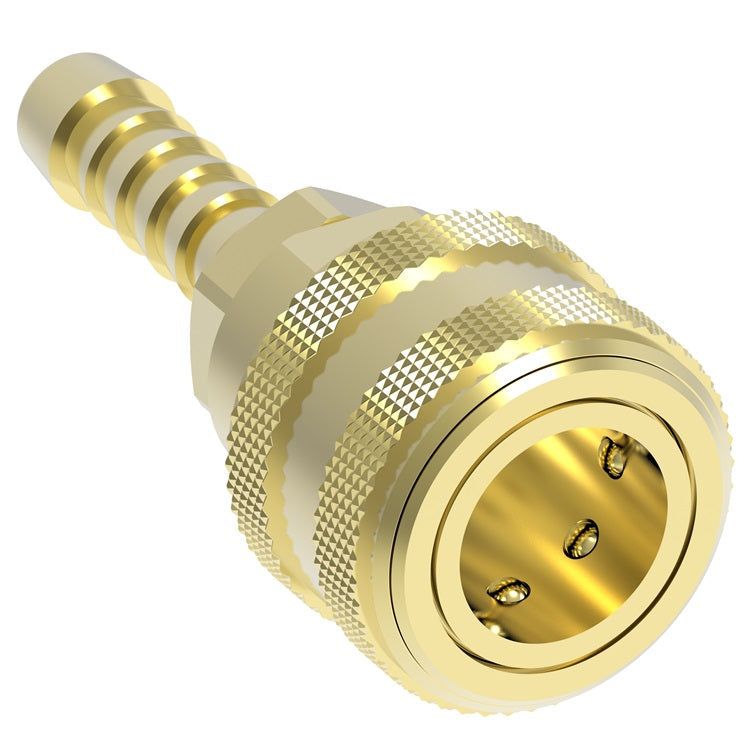

6900 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Socket | NBR Seal | Brass

$90.10 - $90.10

$90.10

$90.10 - $90.10

$90.10

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 6000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 6900 Danfoss
Brand:	Hansen
Series:	6000 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:	Industrial Breathing Air General Pneumatics Maintenance & Repair Fluid Transfer
Materials:	Standard body material: Brass Standard seal material: Nitrile (NBR)
Specifications:	All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
6000	3/4"	15 bar	220 psi	60 bar	880 psi	3,540 lpm	125 gpm

Interchangeability
All Sizes	1/4" & 1/2"
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)


Socket/Female (Figure 1)				Plug/Male (Figure 2)
6000 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	A	B
6800E	Socket/Female	3/4"	1/2"	Brass	1	3.21" (81.53mm)	1.88" (47.75mm)
6900	Socket/Female	3/4"	3/4"	Brass	1	4.06" (103.12mm)	1.88" (47.75mm)
7000E	Socket/Female	3/4"	1"	Brass	1	4.07" (103.38mm)	1.88" (47.75mm)
6000 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	A	B
70A	Plug/Male	3/4"	1/2"	Steel	2	2.53" (64.26mm)	0.94" (23.88mm)
70GA**	Plug/Male	3/4"	1/2"	Steel	2	3.53" (89.66mm)	1.12" (28.45mm)
71A	Plug/Male	3/4"	3/4"	Steel	2	3.44" (87.38mm)	1.06" (26.92mm)
71GA**	Plug/Male	3/4"	3/4"	Steel	2	4.38" (111.25mm)	1.12" (28.45mm)
72A	Plug/Male	3/4"	1"	Steel	2	3.44" (87.38mm)	1.31" (33.27mm)
B71A	Plug/Male	3/4"	3/4"	Steel	2	3.44" (87.38mm)	1.06" (26.92mm)

** With Bleeder Ball Check - Reduces Hose Whip
