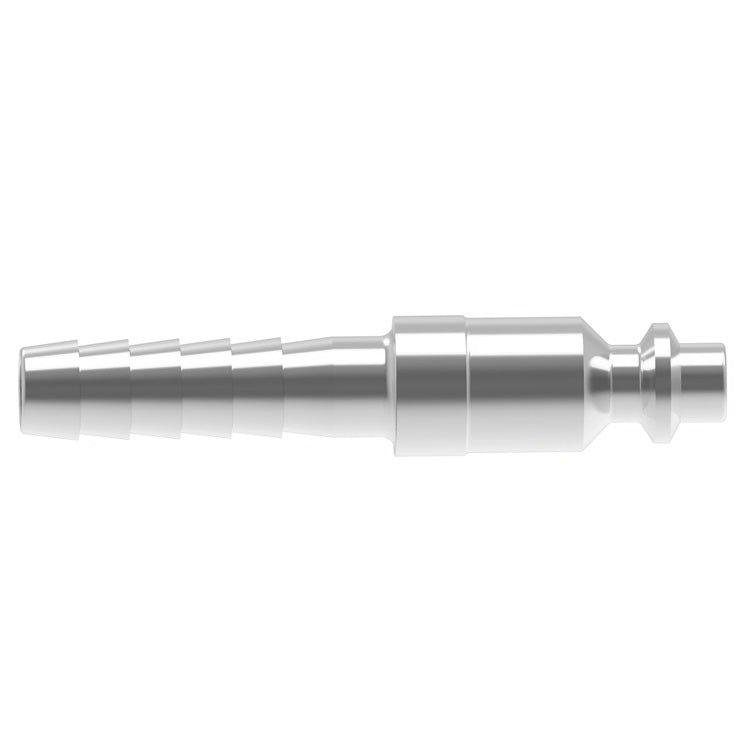

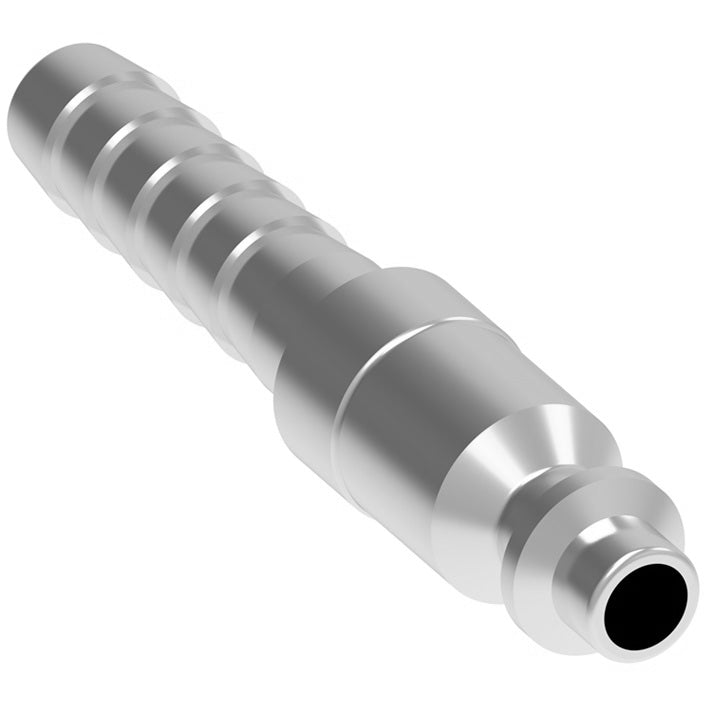

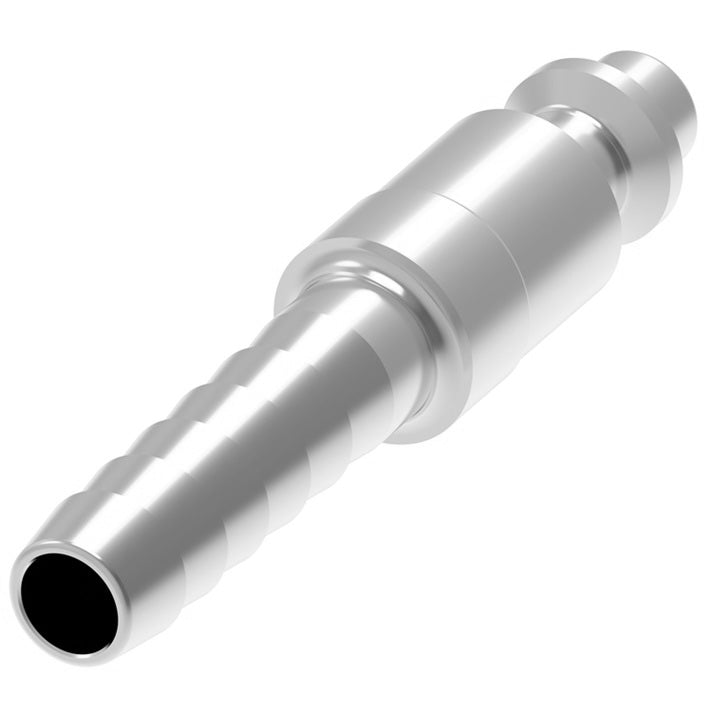

B71A Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Plug | Steel

B71A Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 6000 Series | Hose Barb End | 3/4" Hose ID x 3/4" Body Size | Plug | Steel

$51.22 - $51.22

$51.22

$51.22 - $51.22

$51.22

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 6000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.

Quantity

Specifications for Variant SKU: B71A Danfoss
Brand:	Hansen
Series:	6000 Series
Shape (Orientation):	Straight
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:	Industrial Breathing Air General Pneumatics Maintenance & Repair Fluid Transfer
Materials:	Standard body material: Brass Standard seal material: Nitrile (NBR)
Specifications:	All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
6000	3/4"	15 bar	220 psi	60 bar	880 psi	3,540 lpm	125 gpm

Interchangeability
All Sizes	1/4" & 1/2"
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)


Socket/Female (Figure 1)				Plug/Male (Figure 2)
6000 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	A	B
6800E	Socket/Female	3/4"	1/2"	Brass	1	3.21" (81.53mm)	1.88" (47.75mm)
6900	Socket/Female	3/4"	3/4"	Brass	1	4.06" (103.12mm)	1.88" (47.75mm)
7000E	Socket/Female	3/4"	1"	Brass	1	4.07" (103.38mm)	1.88" (47.75mm)
6000 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Material	Figure	A	B
70A	Plug/Male	3/4"	1/2"	Steel	2	2.53" (64.26mm)	0.94" (23.88mm)
70GA**	Plug/Male	3/4"	1/2"	Steel	2	3.53" (89.66mm)	1.12" (28.45mm)
71A	Plug/Male	3/4"	3/4"	Steel	2	3.44" (87.38mm)	1.06" (26.92mm)
71GA**	Plug/Male	3/4"	3/4"	Steel	2	4.38" (111.25mm)	1.12" (28.45mm)
72A	Plug/Male	3/4"	1"	Steel	2	3.44" (87.38mm)	1.31" (33.27mm)
B71A	Plug/Male	3/4"	3/4"	Steel	2	3.44" (87.38mm)	1.06" (26.92mm)

** With Bleeder Ball Check - Reduces Hose Whip
