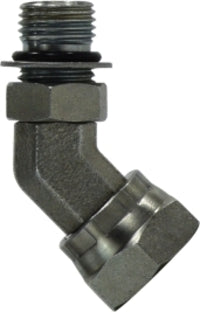

6902NWO44 (6902-NWO-4-4) Midland Hydraulic 45° O-Ring Swivel Adapter - 7/16-20 Male O-Ring Boss x 1/4" Female NPSM - Steel

6902NWO44 by Midland | Hydraulic O-Ring Swivel | 7/16-20 Male O-Ring Boss x 1/4" Female NPSM | 45° Elbow | Adapter | Steel

Save $0.41

$2.58

$2.58 - $2.58

$2.58

$2.17

$2.17 - $2.17

$2.17

Midland Industries
Hydraulic Adapters: 45° O-Ring Swivel Adapter - Steel

Inventory @ Manufacturers Warehouse: 159 Units

Quantity

Specifications for Variant SKU: 6902NWO44 Midland
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Male O-Ring Boss, 1/4in Female NPSM
Material(s):	Steel
Applicable Specs & Approvals:	Applicable SAE Standards

Specifications:
SAE 140357
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
6902	2067R	1272	9365


Part Number	Male O-Ring Boss Size	Male O-Ring Boss Thread (1)	Female NPSM (2)
6902NWO42	1/4"	7/16-20	1/8"
6902NWO44 (6902-NWO-4-4)	1/4"	7/16-20	1/4"
6902NWO46 (6902-NWO-4-6)	1/4"	7/16-20	3/8"
6902NWO64 (6902-NWO-6-4)	3/8"	9/16-18	1/4"
6902NWO66 (6902-NWO-6-6)	3/8"	9/16-18	3/8"
6902NWO68 (6902-NWO-6-8)	3/8"	9/16-18	1/2"
6902NWO84 (6902-NWO-8-4)	1/2"	3/4-16	1/4"
6902NWO86 (6902-NWO-8-6)	1/2"	3/4-16	3/8"
6902NWO88 (6902-NWO-8-8)	1/2"	3/4-16	1/2"
6902NWO108 (6902-NWO-10-8)	5/8"	7/8-14	1/2"
6902NWO1012	5/8"	7/8-14	3/4"
6902NWO128 (6902-NWO-12-8)	3/4"	1-1/16-12	1/2"
6902NWO1212 (6902-NWO-12-12)	3/4"	1-1/16-12	3/4"
6902NWO1616 (6902-NWO-16-16)	1"	1-5/16-12	1"
6902NWO2020	1-1/4"	1-5/8-12	1-1/4"
