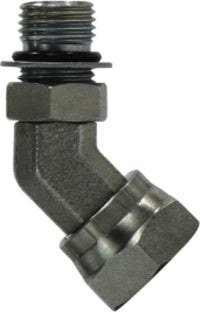

6902NWO46 (6902-NWO-4-6) Midland Hydraulic 45° O-Ring Swivel Adapter - 7/16-20 Male O-Ring Boss x 3/8" Female NPSM - Steel

6902NWO46 by Midland | Hydraulic O-Ring Swivel | 7/16-20 Male O-Ring Boss x 3/8" Female NPSM | 45° Elbow | Adapter | Steel

Save $0.75

$4.82

$4.82 - $4.82

$4.82

$4.07

$4.07 - $4.07

$4.07

Midland Industries
Hydraulic Adapters: 45° O-Ring Swivel Adapter - Steel

Inventory @ Manufacturers Warehouse: 196 Units

Quantity

Specifications for Variant SKU: 6902NWO46 Midland
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Male O-Ring Boss, 3/8in Female NPSM
Material(s):	Steel
Applicable Specs & Approvals:	Applicable SAE Standards

Specifications:
SAE 140357
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
6902	2067R	1272	9365


Part Number	Male O-Ring Boss (1)	Female NPSM (2)
6902NWO44 (6902-NWO-4-4)	7/16-20	1/4"
6902NWO46 (6902-NWO-4-6)	7/16-20	3/8"
6902NWO64 (6902-NWO-6-4)	9/16-18	1/4"
6902NWO66 (6902-NWO-6-6)	9/16-18	3/8"
6902NWO68 (6902-NWO-6-8)	9/16-18	1/2"
6902NWO84 (6902-NWO-8-4)	3/4-16	1/4"
6902NWO86 (6902-NWO-8-6)	3/4-16	3/8"
6902NWO88 (6902-NWO-8-8)	3/4-16	1/2"
6902NWO108 (6902-NWO-10-8)	7/8-14	1/2"
6902NWO128 (6902-NWO-12-8)	1-1/16-12	1/2"
6902NWO1212 (6902-NWO-12-12)	1-1/16-12	3/4"
6902NWO1616 (6902-NWO-16-16)	1-5/16-12	1"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
