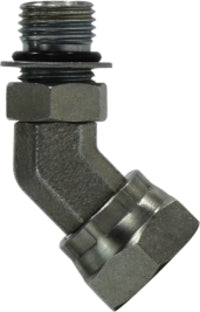

6902NWO84 (6902-NWO-8-4) Midland Hydraulic 45° O-Ring Swivel Adapter - 3/4-16 Male O-Ring Boss x 1/4" Female NPSM - Steel

6902NWO84 by Midland | Hydraulic O-Ring Swivel | 3/4-16 Male O-Ring Boss x 1/4" Female NPSM | 45° Elbow | Adapter | Steel

Save $10.69 Save $10.69
$44.01
$44.01 - $44.01
$44.01
$33.32
$33.32 - $33.32
$33.32

Midland Industries
Hydraulic Adapters: 45° O-Ring Swivel Adapter - Steel

Inventory @ Manufacturers Warehouse: 2 Units
Specifications for Variant SKU: 6902NWO84 Midland
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Male O-Ring Boss, 1/4in Female NPSM
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 140357
Technical Info:
Crossover Series:
6902 2067R 1272 9365
Part Number Male O-Ring Boss
Size		 Male O-Ring Boss
Thread
(1)		 Female NPSM
(2)
6902NWO42 1/4" 7/16-20 1/8"
6902NWO44
(6902-NWO-4-4) 		1/4" 7/16-20 1/4"
6902NWO46
(6902-NWO-4-6) 		1/4" 7/16-20 3/8"
6902NWO64
(6902-NWO-6-4) 		3/8" 9/16-18 1/4"
6902NWO66
(6902-NWO-6-6) 		3/8" 9/16-18 3/8"
6902NWO68
(6902-NWO-6-8) 		3/8" 9/16-18 1/2"
6902NWO84
(6902-NWO-8-4) 		1/2" 3/4-16 1/4"
6902NWO86
(6902-NWO-8-6) 		1/2" 3/4-16 3/8"
6902NWO88
(6902-NWO-8-8) 		1/2" 3/4-16 1/2"
6902NWO108
(6902-NWO-10-8) 		5/8" 7/8-14 1/2"
6902NWO1012 5/8" 7/8-14 3/4"
6902NWO128
(6902-NWO-12-8) 		3/4" 1-1/16-12 1/2"
6902NWO1212
(6902-NWO-12-12) 		3/4" 1-1/16-12 3/4"
6902NWO1616
(6902-NWO-16-16) 		1" 1-5/16-12 1"
6902NWO2020 1-1/4" 1-5/8-12 1-1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
