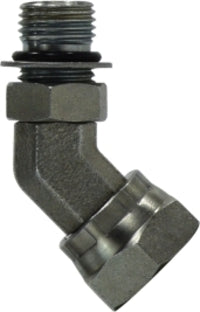

6902NWO86 (6902-NWO-8-6) Midland Hydraulic 45° O-Ring Swivel Adapter - 3/4-16 Male O-Ring Boss x 3/8" Female NPSM - Steel

6902NWO86 by Midland | Hydraulic O-Ring Swivel | 3/4-16 Male O-Ring Boss x 3/8" Female NPSM | 45° Elbow | Adapter | Steel

Save $1.52

$9.71

$9.71 - $9.71

$9.71

$8.19

$8.19 - $8.19

$8.19

Midland Industries
Hydraulic Adapters: 45° O-Ring Swivel Adapter - Steel

Inventory @ Manufacturers Warehouse: 3 Units

Quantity

Specifications for Variant SKU: 6902NWO86 Midland
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Male O-Ring Boss, 3/8in Female NPSM
Material(s):	Steel
Applicable Specs & Approvals:	Applicable SAE Standards

Specifications:
SAE 140357
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
6902	2067R	1272	9365


Part Number	Male O-Ring Boss Size	Male O-Ring Boss Thread (1)	Female NPSM (2)
6902NWO42	1/4"	7/16-20	1/8"
6902NWO44 (6902-NWO-4-4)	1/4"	7/16-20	1/4"
6902NWO46 (6902-NWO-4-6)	1/4"	7/16-20	3/8"
6902NWO64 (6902-NWO-6-4)	3/8"	9/16-18	1/4"
6902NWO66 (6902-NWO-6-6)	3/8"	9/16-18	3/8"
6902NWO68 (6902-NWO-6-8)	3/8"	9/16-18	1/2"
6902NWO84 (6902-NWO-8-4)	1/2"	3/4-16	1/4"
6902NWO86 (6902-NWO-8-6)	1/2"	3/4-16	3/8"
6902NWO88 (6902-NWO-8-8)	1/2"	3/4-16	1/2"
6902NWO108 (6902-NWO-10-8)	5/8"	7/8-14	1/2"
6902NWO1012	5/8"	7/8-14	3/4"
6902NWO128 (6902-NWO-12-8)	3/4"	1-1/16-12	1/2"
6902NWO1212 (6902-NWO-12-12)	3/4"	1-1/16-12	3/4"
6902NWO1616 (6902-NWO-16-16)	1"	1-5/16-12	1"
6902NWO2020	1-1/4"	1-5/8-12	1-1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
