6R5-6FJ90 Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - 90° Female Swivel - 5/16" Hose ID - 9/16-18 Thread Size

6R5-6FJ90 by Couplamatic | R5 Reusable Coupling | 5/16" Hose ID x 9/16-18 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $0.96 Save $0.96
$15.21
$15.21 - $15.21
$15.21
$14.25
$14.25 - $14.25
$14.25

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: 6R5-6FJ90 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 5/16in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Assembly Instructions:
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.

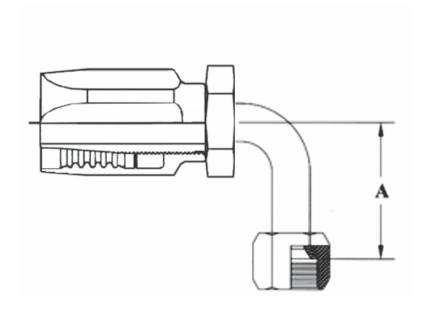

    Part Number Hose ID Hose Dash Size Thread Size Tube OD A-DropInches Hose Type
    4R5-4FJ90 3/16" -04 7/16-20 1/4" 0.69" 100R5
    6R5-6FJ90 5/16" -06 9/16-18 3/8" 0.84" 100R5
    8R5-8FJ90 13/32" -08 3/4-16 1/2" 1.09" 100R5
