8R5-8FJ90 Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - 90° Female Swivel - 13/32" Hose ID - 3/4-16 Thread Size

8R5-8FJ90 by Couplamatic | R5 Reusable Coupling | 13/32" Hose ID x 3/4-16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $1.54 Save $1.54
$24.19
$24.19 - $24.19
$24.19
$22.65
$22.65 - $22.65
$22.65

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: 8R5-8FJ90 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 13/32in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Assembly Instructions:
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.

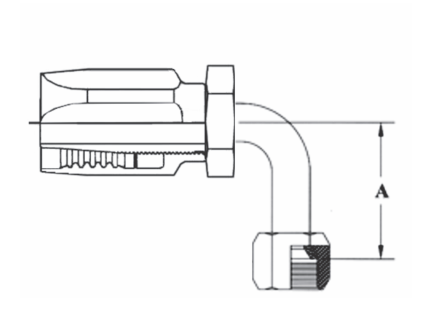

    Part Number Hose ID Hose Dash Size Thread Size Tube OD A-DropInches Hose Type
    4R5-4FJ90 3/16" -04 7/16-20 1/4" 0.69" 100R5
    6R5-6FJ90 5/16" -06 9/16-18 3/8" 0.84" 100R5
    8R5-8FJ90 13/32" -08 3/4-16 1/2" 1.09" 100R5
    Couplamatic Systems Inc

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
