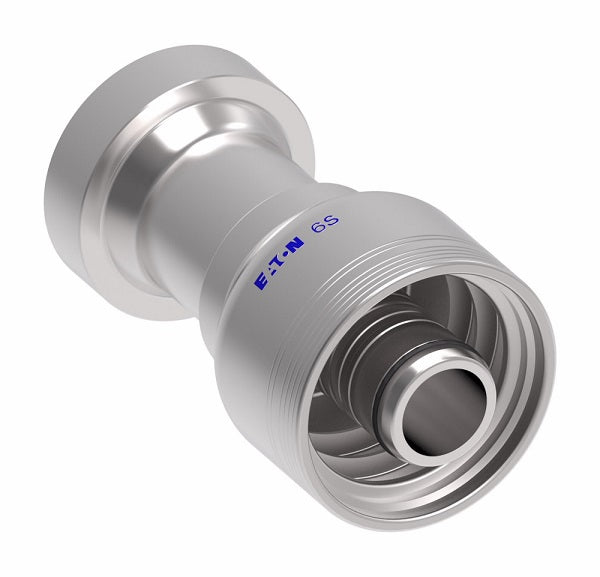

6S20CT16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange (CT) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

6S20CT16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange (CT) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,476.20 - $1,476.20

$1,476.20

$1,476.20 - $1,476.20

$1,476.20

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CT) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6S20CT16 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash
6S16CT16	-16	25	-16	1.87"	4.02"	2.45"	0.76"
6S20CT16	-20	25	-16	2.13"	4.13"	2.56"	0.76"
6S20CT20	-20	31	-20	2.13"	4.93"	2.72"	0.99"
6S24CT20	-24	31	-20	2.50"	5.19"	2.99"	0.99"
6S24CT24	-24	38	-24	2.50"	7.68"	4.61"	1.22"
6S32CT24	-32	38	-24	3.13"	8.11"	5.04"	1.22"
6S32CT32	-32	51	-32	3.13"	8.22"	5.15"	1.66"
