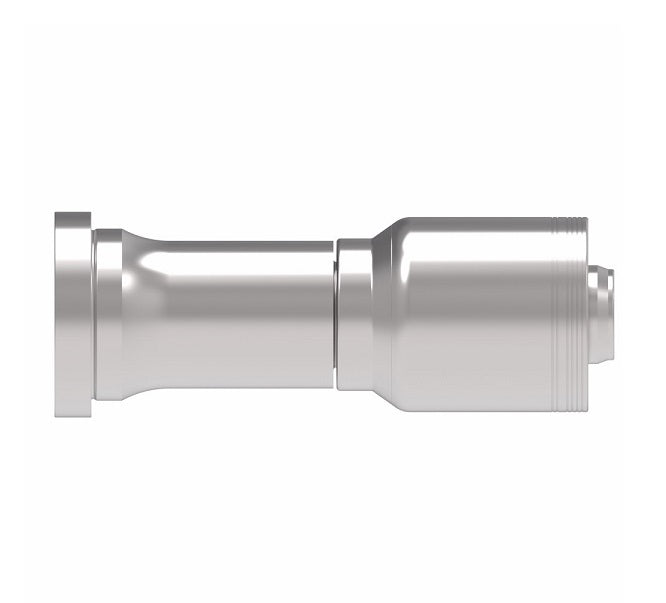

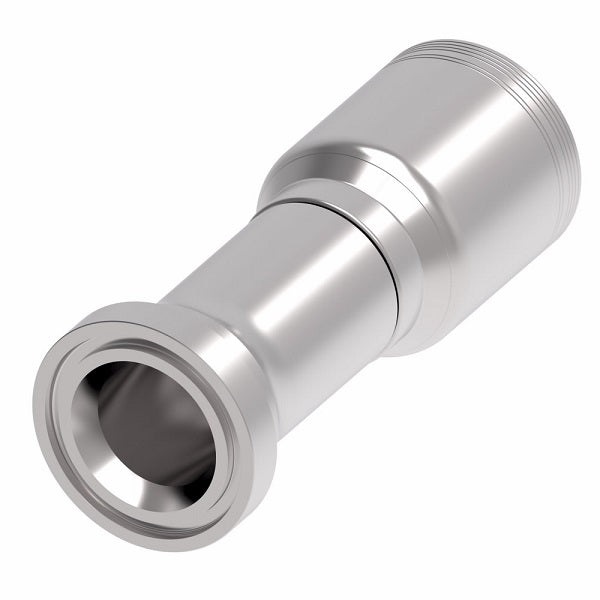

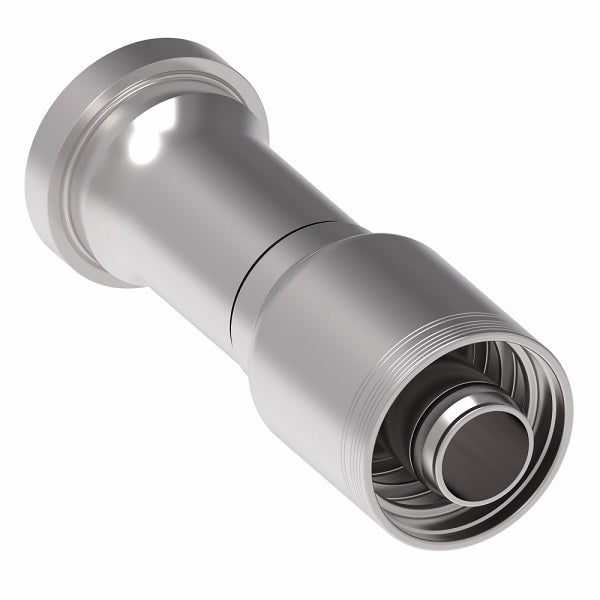

6S32CT24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel
6S32CT24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel
6S32CT24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel

6S32CT24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel

$314.52 - $314.52
$314.52
$314.52 - $314.52
$314.52

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CT) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S32CT24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 2in CAT Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
6S16CT16 -16 25 -16 1.87" 4.02" 2.45" 0.76"
6S20CT16 -20 25 -16 2.13" 4.13" 2.56" 0.76"
6S20CT20 -20 31 -20 2.13" 4.93" 2.72" 0.99"
6S24CT20 -24 31 -20 2.50" 5.19" 2.99" 0.99"
6S24CT24 -24 38 -24 2.50" 7.68" 4.61" 1.22"
6S32CT24 -32 38 -24 3.13" 8.11" 5.04" 1.22"
6S32CT32 -32 51 -32 3.13" 8.22" 5.15" 1.66"
