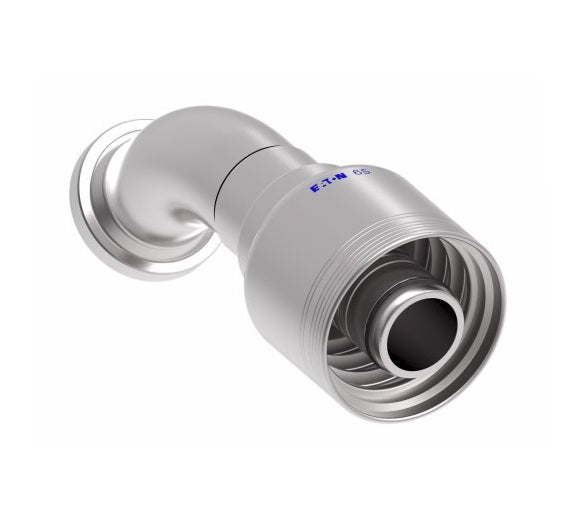

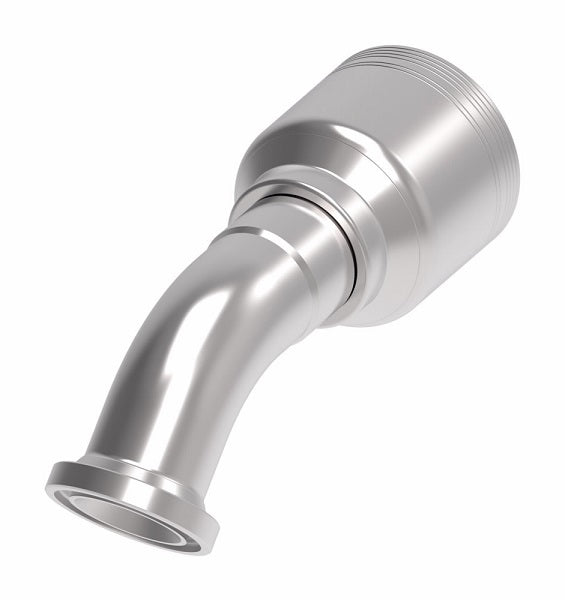

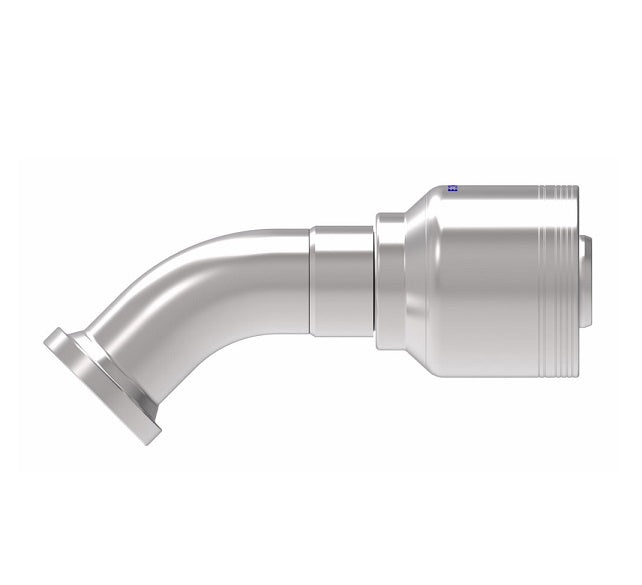

6S20FLA20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel
6S20FLA20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10
6S20FLA20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10
6S20FLA20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel

6S20FLA20 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,272.80 - $1,272.80
$1,272.80
$1,272.80 - $1,272.80
$1,272.80

Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FLA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S20FLA20 Danfoss | 10 |
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
6S16FLA16 -16 25 -16 1.75" 5.16" 3.59" 0.76" 1.26"
6S20FLA16 -20 25 -16 2.00" 5.91" 4.35" 0.76" 1.54"
6S20FLA20 -20 31 -20 2.00" 6.60" 4.39" 0.99" 1.54"
6S24FLA24 -24 38 -24 2.37" 8.44" 5.37" 1.22" 1.77"
6S32FLA24 -32 38 -24 2.81" 9.88" 6.81" 1.22" 2.26"
6S32FLA32 -32 51 -32 2.81" 10.00" 6.92" 1.66" 2.26"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
