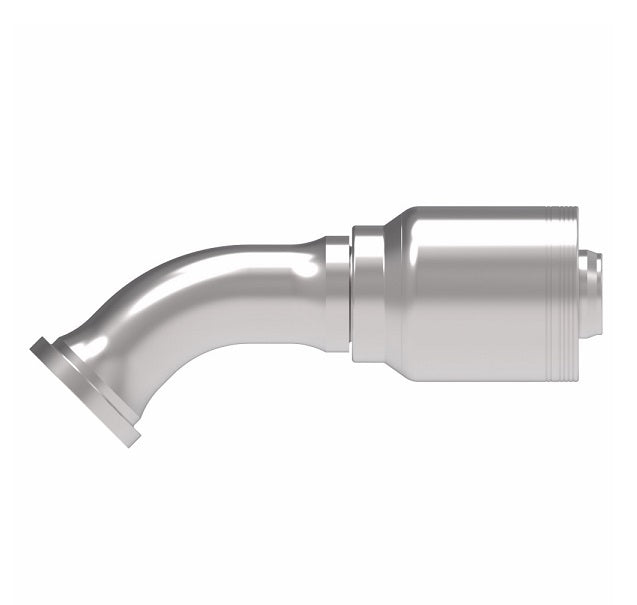

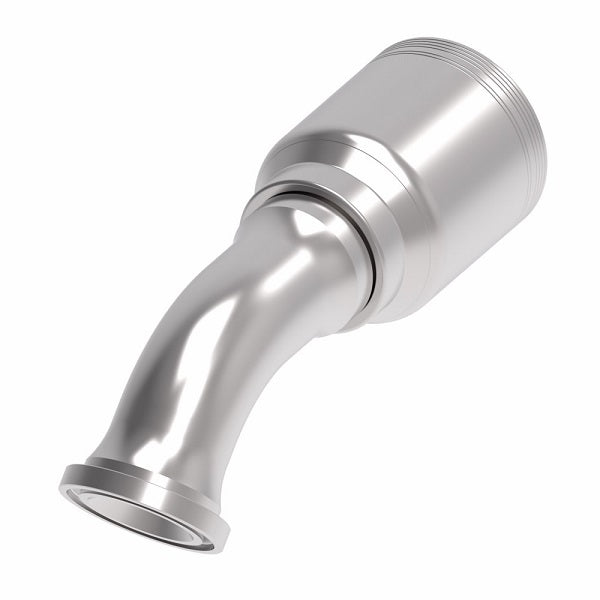

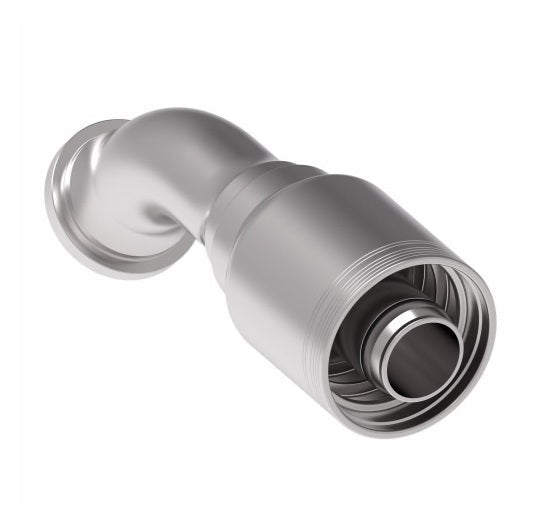

6S24FLA24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel

6S24FLA24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel

Name: 6S24FLA24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 45° Elbow (FLA) Crimp Fitting | -24 Code 61 Flange x -24 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S24FLA24 Danfoss
Price: 207.25 USD
Availability: InStock

$207.25 - $207.25

$207.25

$207.25 - $207.25

$207.25

Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FLA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S24FLA24 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Code 61 Flange, 1-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16FLA16	-16	25	-16	1.75"	5.16"	3.59"	0.76"	1.26"
6S20FLA16	-20	25	-16	2.00"	5.91"	4.35"	0.76"	1.54"
6S20FLA20	-20	31	-20	2.00"	6.60"	4.39"	0.99"	1.54"
6S24FLA24	-24	38	-24	2.37"	8.44"	5.37"	1.22"	1.77"
6S32FLA24	-32	38	-24	2.81"	9.88"	6.81"	1.22"	2.26"
6S32FLA32	-32	51	-32	2.81"	10.00"	6.92"	1.66"	2.26"
