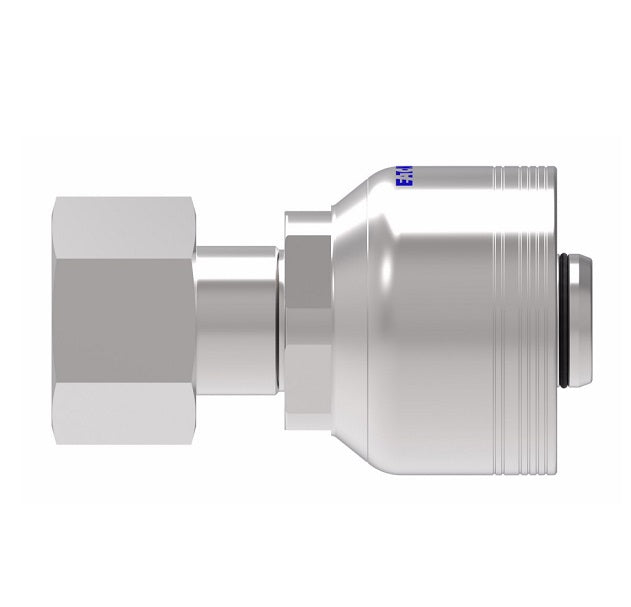

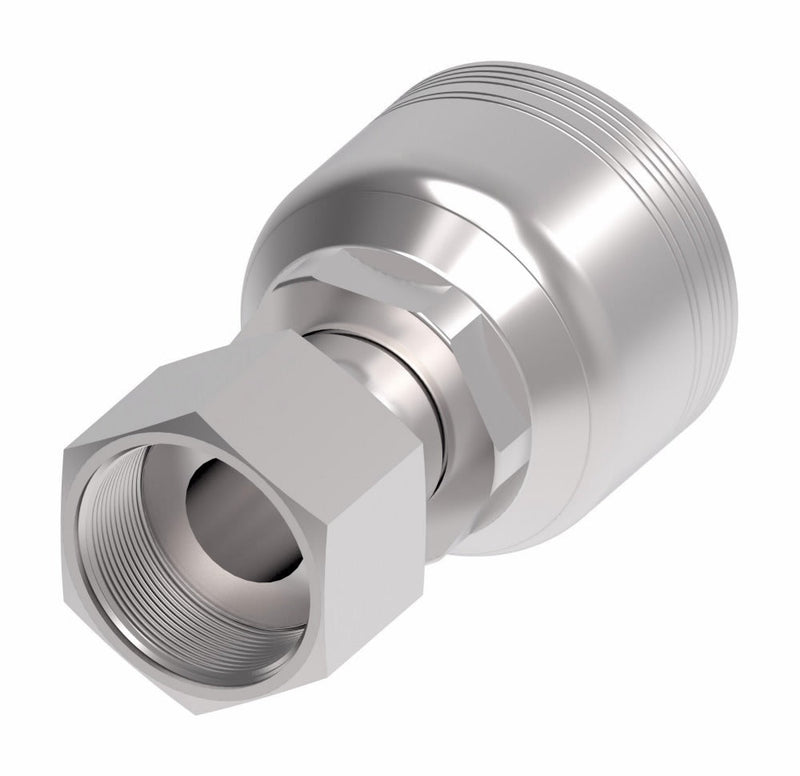

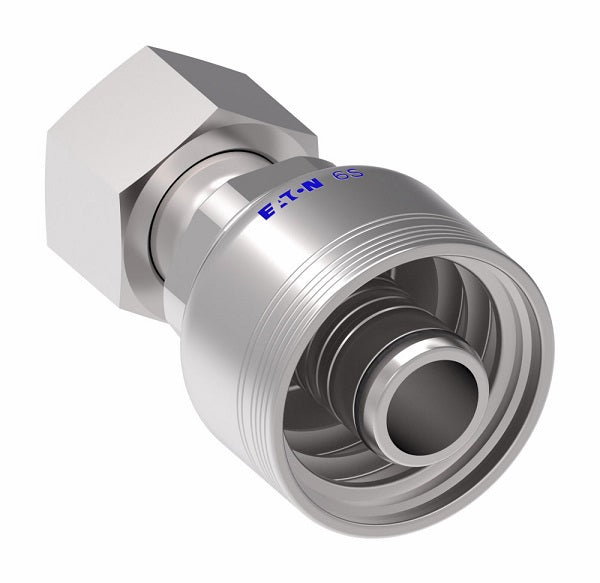

6SA20FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

6SA20FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

Name: 6SA20FR16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6SA20FR16 Danfoss
Price: 109.58 USD
Availability: InStock

$109.58 - $109.58

$109.58

$109.58 - $109.58

$109.58

Aeroquip® by Danfoss
6 Wire 6S Female ORS Swivel Crimp Fitting (FR) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6SA20FR16 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1	Hex 2
6SA16FR16	-16	25	-16	1-7/16-12	3.24"	1.68"	0.76"	1-5/8"	1-5/8"
6SA20FR16	-20	25	-16	1-11/16-12	3.24"	1.68"	0.76"	1-5/8"	1-7/8"
6SA20FR20	-20	31	-20	1-11/16-12	3.93"	1.72"	0.99"	1-13/16"	1-7/8"
6SA24FR24	-24	38	-24	2-12	4.95"	1.87"	1.22"	2-1/4"	2-1/4"
