6SA20FR20 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
6SA20FR20 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel | Pack of 10
6SA20FR20 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel | Pack of 10
6SA20FR20 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

6SA20FR20 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,271.60 - $1,271.60
$1,271.60
$1,271.60 - $1,271.60
$1,271.60

Aeroquip® by Danfoss

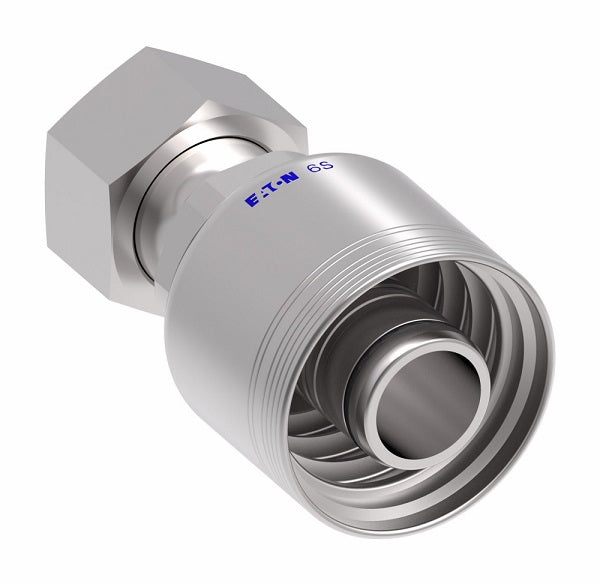

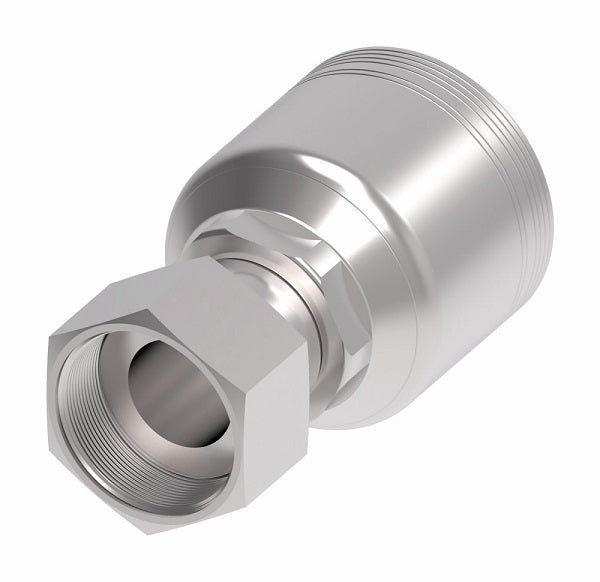

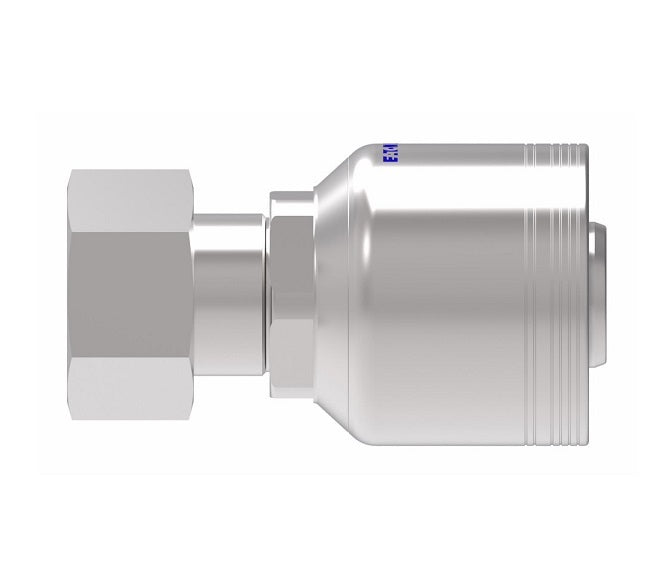

6 Wire 6S Female ORS Swivel Crimp Fitting (FR) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6SA20FR20 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
6SA16FR16 -16 25 -16 1-7/16-12 3.24" 1.68" 0.76" 1-5/8" 1-5/8"
6SA20FR16 -20 25 -16 1-11/16-12 3.24" 1.68" 0.76" 1-5/8" 1-7/8"
6SA20FR20 -20 31 -20 1-11/16-12 3.93" 1.72" 0.99" 1-13/16" 1-7/8"
6SA24FR24 -24 38 -24 2-12 4.95" 1.87" 1.22" 2-1/4" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
