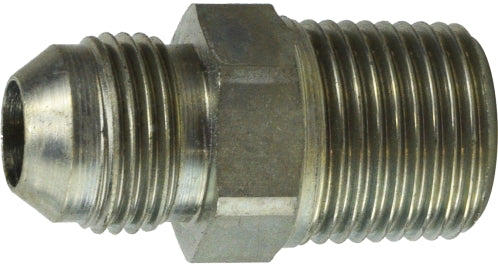

7000-04-06 by Midland | Hydraulic JIC to BSPT Connector | 1/4" Male JIC 37° Flare x 3/8" Male BSPT | Steel

Name: 7000-04-06 by Midland | Hydraulic JIC to BSPT Connector | 1/4" Male JIC 37° Flare x 3/8" Male BSPT | Steel
Brand: Midland Industries
SKU: 7000-04-06 Midland
Price: 1.23 USD
Availability: InStock

Save $0.82

$2.05

$2.05 - $2.05

$2.05

$1.23

$1.23 - $1.23

$1.23

Midland Industries
Hydraulic Adapters: JIC to BSPT Connector - Steel

Inventory @ Manufacturers Warehouse: 196 Units

Quantity

Specifications for Variant SKU: 7000-04-06 Midland
Ends Configuration:	1/4in Male JIC, 3/8in Male BSPT
Material(s):	Steel

Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
3404	3O5


Part Number	Male JIC 37° Flare (1)	Male JIC 37° Flare Thread (1)	Male BSPT (2)	Male BSPT Thread (2)
700042 (7000-4-2)	1/4"	7/16-20	1/8"	1/8-28
700044 (7000-4-4)	1/4"	7/16-20	1/4"	1/4-19
7000-04-06	1/4"	7/16-20	3/8"	3/8-19
700064 (7000-6-4)	3/8"	9/16-18	1/4"	1/4-19
700066 (7000-6-6)	3/8"	9/16-18	3/8"	3/8-19
700068 (7000-6-8)	3/8"	9/16-18	1/2"	1/2-14
7000-08-04	1/2"	3/4-16	1/4"	1/4-19
700086 (7000-8-6)	1/2"	3/4-16	3/8"	3/8-19
700088 (7000-8-8)	1/2"	3/4-16	1/2"	1/2-14
7000812 (7000-8-12)	1/2"	3/4-16	3/4"	3/4-14
7000-08-16	1/2"	3/4-16	1"	1-11
7000108 (7000-10-8)	5/8"	7/8-14	1/2"	1/2-14
70001012 (7000-10-12)	5/8"	7/8-14	3/4"	3/4-14
7000128 (7000-12-8)	3/4"	1-1/16-12	1/2"	1/2-14
70001212 (7000-12-12)	3/4"	1-1/16-12	3/4"	3/4-14
7000-12-16	3/4"	1-1/16-12	1"	1-11
7000-14-12	7/8"	1-13/16-12	3/4"	3/4-14
7000-16-12	1"	1-5/16-12	3/4"	3/4-14
70001616 (7000-16-16)	1"	1-5/16-12	1"	1-11
70002020 (7000-20-20)	1-1/4"	1-5/8-12	1-1/4"	1-1/4-11
