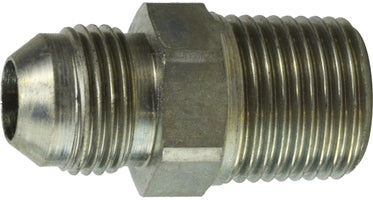

700044 (7000-4-4) Midland Hydraulic JIC to BSPT Connector - 7/16-20 Male JIC 37° Flare x 1/4-19 Male BSPT - Steel

700044 by Midland | Hydraulic JIC to BSPT Connector | 7/16-20 Male JIC 37° Flare x 1/4-19 Male BSPT | Steel

Save $2.05 Save $2.05
$5.12
$5.12 - $5.12
$5.12
$3.07
$3.07 - $3.07
$3.07

Midland Industries
Hydraulic Adapters: JIC to BSPT Connector - Steel

Inventory @ Manufacturers Warehouse: 254 Units
Specifications for Variant SKU: 700044 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 1/4in Male BSPT
Material(s): Steel
Technical Info:
Crossover Series:
3404 3O5
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare
Thread
(1)		 Male BSPT
(2)		 Male BSPT
Thread
(2)
700042
(7000-4-2) 		1/4" 7/16-20 1/8" 1/8-28
700044
(7000-4-4) 		1/4" 7/16-20 1/4" 1/4-19
7000-04-06 1/4" 7/16-20 3/8" 3/8-19
700064
(7000-6-4) 		3/8" 9/16-18 1/4" 1/4-19
700066
(7000-6-6) 		3/8" 9/16-18 3/8" 3/8-19
700068
(7000-6-8) 		3/8" 9/16-18 1/2" 1/2-14
7000-08-04 1/2" 3/4-16 1/4" 1/4-19
700086
(7000-8-6) 		1/2" 3/4-16 3/8" 3/8-19
700088
(7000-8-8) 		1/2" 3/4-16 1/2" 1/2-14
7000812
(7000-8-12) 		1/2" 3/4-16 3/4" 3/4-14
7000-08-16 1/2" 3/4-16 1" 1-11
7000108
(7000-10-8) 		5/8" 7/8-14 1/2" 1/2-14
70001012
(7000-10-12) 		5/8" 7/8-14 3/4" 3/4-14
7000128
(7000-12-8) 		3/4" 1-1/16-12 1/2" 1/2-14
70001212
(7000-12-12) 		3/4" 1-1/16-12 3/4" 3/4-14
7000-12-16 3/4" 1-1/16-12 1" 1-11
7000-14-12 7/8" 1-13/16-12 3/4" 3/4-14
7000-16-12 1" 1-5/16-12 3/4" 3/4-14
70001616
(7000-16-16) 		1" 1-5/16-12 1" 1-11
70002020
(7000-20-20) 		1-1/4" 1-5/8-12 1-1/4" 1-1/4-11
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
