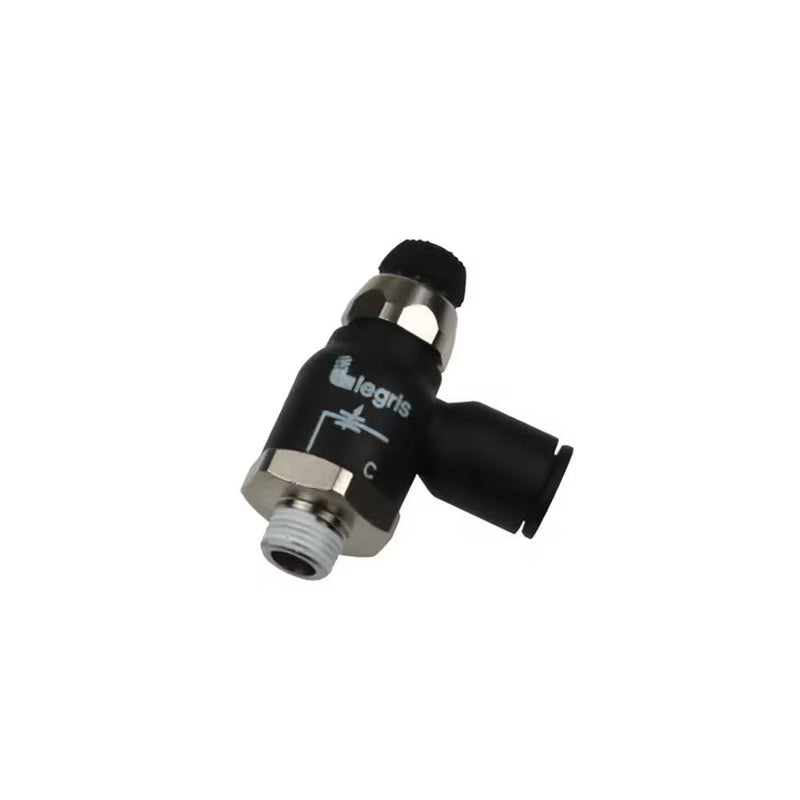

7067 06 13 by Parker | Legris Bi-Directional Compact Flow Regulator | 6 mm Tube Size x 1/4" Male BSPT Thread | 16 mm Hex | 90° Elbow | Polymer | Pack of 10

Save $15.31

$210.38

$210.38 - $210.38

$210.38

$195.07

$195.07 - $195.07

$195.07

by Parker Hannifin
Flow Control Regulators:7067 Bi-Directional Compact Flow Regulator, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 7067 06 13 Parker \| 10 \|
Series:	7067 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	F1	H (max)	H (min)	H1	L	L1	ØT	Kg
7067 04 10	4 mm	1/8"	10 mm	16 mm	42.5 mm	36.5 mm	14.7 mm	22 mm	9 mm	10 mm	.025 Kg
7067 06 10	6 mm	1/8"	10 mm	16 mm	42.5 mm	36.5 mm	14.7 mm	22 mm	9 mm	10 mm	.010 Kg
7067 06 13	6 mm	1/4"	10 mm	16 mm	42.5 mm	36.5 mm	14.7 mm	22 mm	9 mm	10 mm	.014 Kg
7067 08 10	8 mm	1/8"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	10.5 mm	14 mm	.034 Kg
7067 08 13	8 mm	1/4"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	10.5 mm	14 mm	.036 Kg
7067 08 17	8 mm	3/8"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	11 mm	14 mm	.042 Kg

Pre-coated thread

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
